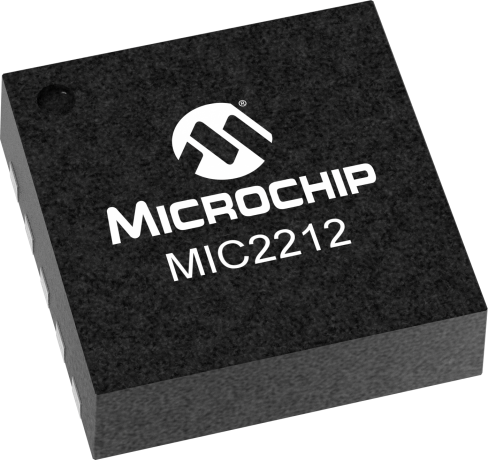

product primary image

MIC2212

Dual uCap LDO

Status: In Production

Features:

  • Input voltage range: 2.25V to 5.5V
  • Stable with ceramic output capacitor
  • Output 1: 150mA output current
  • Output 2: 300mA output current
  • Power-on reset function with adjustable delay time
  • Low dropout voltage of 80mV @ 100mA
  • Ultra-low quiescent current of 48µA
  • ±1.0% initial accuracy
  • ±2.0% over temperature
  • Thermal shutdown protection
  • Current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2212 is a dual µCap low dropout regulator with power-on reset circuit. The first regulator is capable of sourcing 150mA, while the second regulator can source up to 300mA and includes a power-on reset function.

Ideal for battery operated applications, the MIC2212 offers 1% accuracy, extremely low dropout voltage (80mV @ 100mA), and extremely low ground current, only 48µA total. Equipped with TTL logic compatible enable pins, the MIC2212 can be put into a zero off-mode current state, drawing no current when disabled.

The MIC2212 is a µCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost.

Additional Features
    • Input voltage range: 2.25V to 5.5V
    • Stable with ceramic output capacitor
    • 2 LDO outputs
      • Output 1: 150mA output current
      • Output 2: 300mA output current
    • Power-on reset function with adjustable delay time
    • Low dropout voltage of 80mV @ 100mA
    • Ultra-low quiescent current of 48µA
    • High output accuracy:
      • ±1.0% initial accuracy
      • ±2.0% over temperature
    • Thermal shutdown protection
    • Current limit protection
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
150
IOUT #2
300
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150,300
VIN Min (V)
2.25
VIN Max (V)
5.5
VOUT (V)
Please Contact Sales Office
Voltage Drop Typ (mV)
240
IGND Typ (µA)
48
Tol Typ %
±1
Noise (µV) rms
30
PSRR 1 kHz (dB)
60
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2212-PPYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-MMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-DNYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-DOYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-GKYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-GLYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-PNYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-MKYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-SJYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-WSYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-PMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-MPYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-GMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-GPYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-JSYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-KMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-KNYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-LMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-LOYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-LPYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-NNYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-GSYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-SGYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-PSYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC2212-SMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
