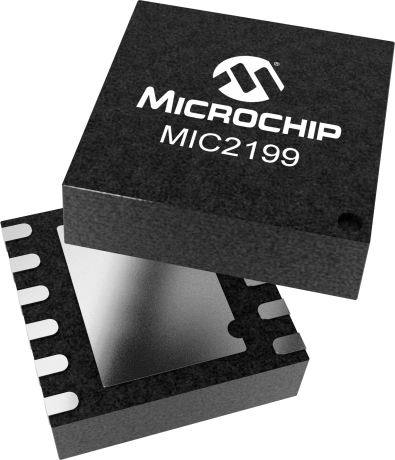

product primary image

MIC2199

32V, 300 KHz PWM Synchronous Buck Controller IC

Status: In Production

Features:

  • 4.5V to 32V input range
  • 4mm x 4mm MLF® package
  • 300kHz PWM operation
  • 95% efficiency
  • Output voltage adjustable down to 0.8V
  • 20A output current capability
  • Drives all N-Channel MOSFETs
  • Logic controlled micropower shutdown
  • Cycle-by-cycle current limiting
  • Adjustable undervoltage lockout
  • Frequency foldback overcurrent protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2199 is a high power 300kHz synchronous buck DC-to-DC controller. The MIC2199 operates from a wide 4.5V to 32V input and can be programmed for output voltages from 0.8V to 6V. The wide input voltage capability makes the MIC2199 an ideal solution for point-of-load DC-to-DC conversion in 5V, 12V, 24V, and 28V systems. The 300kHz switching frequency allows the use of a small inductor and small output capacitors. The current mode PWM control along with the external COMP pin allows for ease of stability compensation and fast transient response across a wide range of applications. An all N-Channel synchronous architecture and powerful output drivers allow up to 20A of output current capability. For smaller external components, refer to the 500kHz MIC2198. The MIC2199 is available with a junction temperature range from -40°C to 125°C.

Additional Features
    • 4.5V to 32V input range
    • 4mm x 4mm MLF® package
    • 300kHz PWM operation
    • 95% efficiency
    • Output voltage adjustable down to 0.8V
    • 20A output current capability
    • Drives all N-Channel MOSFETs
    • Logic controlled micropower shutdown
    • Cycle-by-cycle current limiting
    • Adjustable undervoltage lockout
    • Frequency foldback overcurrent protection
Parametrics
Name
Value
Supported Topologies
Buck
Supported Outputs
1
Minimum Input Voltage (V)
4.5
Maximum Input Voltage (V)
32
Minimum Output Voltage (V)
0.8
Maximum Output Voltage (V)
6
Typical Tolerance (%)
±1
Duty Cycle Max (%)
0.85
Operating Frequency (Hz)
300K
Internal Voltage Bias
True
Enable Pin
True
Current Limit / Short Circuit Protection
True
Operating Supply Current (mA)
1.6
Iq Off (µA)
0.1
Package
12/4x4 MLF

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2199YML-TR
0.042100
0.147204
12
VDFN
4x4x0.9mm
NiPdAu
e4
MIC2199YML
0.042100
0.072333
12
VDFN
4x4x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
