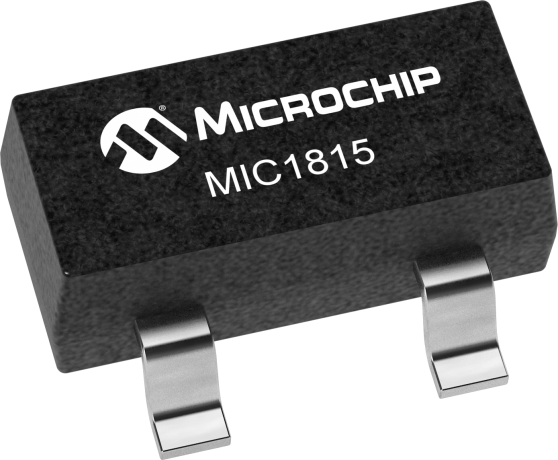

MIC1815

Microprocessor Supervisory Reset Circuit, Push-Pull, Active Low

Status: In Production

Features:

  • Precision voltage monitor for 10% or 20% drop in 3.3V power supplies
  • /RESET remains valid with VCC as low as 1V
  • 5µA supply current
  • 100ms minimum reset pulse width
  • No external components required
  • Available in 3-pin SOT-23 package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC1815 is an inexpensive microprocessor supervisory circuit that monitors power supplies in microprocessor based systems.

The function of these devices is to assert a reset if the power supply drops below a designated reset threshold level. Several different reset threshold levels are available to accommodate 10% or 20% drop in 3.3V powered systems.

The MIC1815 has an active low /RESET output. The reset output is guaranteed to remain asserted for a minimum of 100ms after VCC has risen above the designated reset threshold level. The MIC1815 comes in a 3-pin SOT-23 package.

Additional Features
    • Precision voltage monitor for 10% or 20% drop in 3.3V power supplies
    • /RESET remains valid with VCC as low as 1V
    • 5µA supply current
    • 100ms minimum reset pulse width
    • No external components required
    • Available in 3-pin SOT-23 package
Parametrics
Name
Value
Product Type
Supervisor
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
1.5 - 5.5
Nominal Reset Voltage (V)
2.55, 2.88
Reset Type
Active Low
Output
Push-Pull
Typical Reset Pulse Width (ms)
100
Typical Supply Current (µA)
5

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC1815-20UY-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC1815-10UY-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
