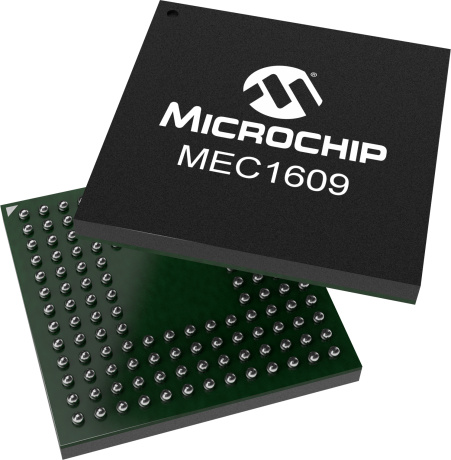

product primary image

MEC1609

Embedded Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MEC1609/MEC1609i is the mixed signal base component of a multi-device advanced I/O controller architecture.

It incorporates a high-performance 32-bit embedded microcontroller with a 192 Kilobyte embedded Flash subsystem, 16 Kilobytes of SRAM and 2 Kilobytes of instruction cache with an Advanced High-performance Bus (AHB), memory-mapped Serial Peripheral Interface (SPI) Flash Read Controller. MEC1609 communicates with the system host using the Intel® Low Pin Count bus. It is directly powered by two individual suspend supply planes (VBAT and VTR) and senses a third runtime power plane (VCC) to provide “instant on” and system power management functions.

Family parts
MEC1609I-PZP
MEC1609I-PZV
MEC1609-PZP
MEC1609-PZV

Additional Features
  • ARC-625D system controller
  • 144 LFBGA package
  • 192KB Embedded Flash Subsystem
  • 16KB RAM (65B CMOS)
  • 18x8 keyboard scan matrix
  • 115 GPIO Pins
  • 8 SMBus ports
  • 16 analog to digital converter channels
  • 3 LED
  • 3 low-power timers
  • 8 PWM
  • 4 Fan Tachometer Inputs
  • MCU Serial Debug Port
  • Two pin serial debug port with 16C550A register interface
  • JTAG interface
Parametrics
Name
Value
Keyboard Scan Matrix
18x8
UART
Y
Host Interface
LPC
Code Storage
Embedded Flash
Operating Temperature
-40° C to +85° C
Low Power Timers
3
Fan Tachometer Inputs
4
Max Operating Frequency
20 Mhz
Data RAM
16KB RAM (65B CMOS)
Breathing/ Blinking LED
3
GPIO
115
PWM
8
Package
144 LFBGA
VBAT-Powered, Power Control Interface
Y
LED
3
Analog to Digital Converter
16 ch
SMBus Ports
8
BC Link
4
SPI_Host
2
Flash/Code RAM
192KB Flash
PECI
3
System Controller
32-bit
ACPI Interfaces
4
Counter/Timers
4

Documents

Jump to:

Board Design Files


Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MEC1609I-PZV
0.251500
0.480769
144
TFBGA
7x7x1.0
SAC
e1
MEC1609-PZV
0.251500
0.480769
144
TFBGA
7x7x1.0
SAC
e1
MEC1609I-PZP
0.355000
1.125000
144
LFBGA
10x10x1.4
SAC
e8
MEC1609-PZP
0.355000
1.125000
144
LFBGA
10x10x1.4
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
