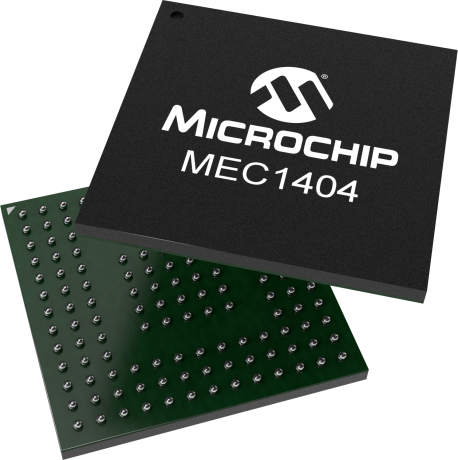

product primary image

MEC1404

Embedded Controller

Status: In Production

Features:

  • 3.3 V
  • 96K Optimized for Code
  • 32K Optimized for Data
  • MIPS32® M14K™ MIcrocontroller Core
  • ACPI 3.0 Compliant
  • PC2001 Compliant
  • VTR (standby) and VBAT (Power Planes)
  • Connected Standby Support
  • LPC Host Interface
  • 8042 Emulated Keyboard Controller
  • Secure Boot ROM Loader
  • System to EC Message Interface
  • Trace FIFO Debug Port (TFDP)
  • 32-bit RTOS Timer
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The MEC140X/1X family is a highly-configurable, mixed signal, advanced I/O controller architecture. MEC1404 is a keyboard and embedded controller customized for notebooks and tablet platforms. As a cost-effective system solution, it incorporates a 32-bit MIPS32 M14K Microcontroller core with 128KB of closely-coupled SRAM for code and data that loads from SPI Flash. Designers can leverage the host SPI-flash (used for BIOS storage) for non-volatile EC firmware storage.

Microchip’s MEC14XX family reduces the system bill-of-materials cost by providing a flexible arrangement that allows multiple I/O signals to be configured to support either 3.3V or 1.8V. This eliminates the need for external voltage translators The MEC1406 communicates with the system host through Intel Low Pin Count (LPC) or I2C.

All members of the MEC14XX family are pin and register compatible and are supported by Microchip’s development tools. Examples include the MPLAB® XC Compilers, the MPLAB REAL ICE™In-Circuit Emulator (part # DV244005), MPLAB ICD 3 In-Circuit Debugger (part # DV164035) and PICkit™ 3 Starter Kit (part # DV164130).

Family parts
MEC1404-NU
MEC1404-NU-D0
MEC1404-SZ

For product comparison, please consider: MEC1418

Additional Features
    • 3.3 V
    • 128K SRAM (Code and Data)
      • 96K Optimized for Code
      • 32K Optimized for Data
    • MIPS32® M14K™ MIcrocontroller Core
    • ACPI 3.0 Compliant
    • PC2001 Compliant
    • VTR (standby) and VBAT (Power Planes)
    • Connected Standby Support
    • LPC Host Interface
    • 8042 Emulated Keyboard Controller
    • Secure Boot ROM Loader
    • System to EC Message Interface
    • Trace FIFO Debug Port (TFDP)
    • 32-bit RTOS Timer
Parametrics
Name
Value
Keyboard Scan Matrix
18x8
UART
Full
Customer Programmable RAM
Yes
Host Interface
LPC, I2C
Code Storage
128 KB SRAM (Code + Data)
Operating Temperature
0° C to +70° C
Tach
2
Fan Tachometer Inputs
2
8024 Keyboard Controller
1
Data RAM
32kB
Breathing/ Blinking LED
3
GPIO
106
PWM
8
Package
128 VTQFP
LED
3
SMBus Interface
3
Analog to Digital Converter
8
SMBus Ports
6
BC Link
2
AMD SB-TSI
1
ACPI Interfaces
5
Counter/Timers
4

Documents

Jump to:

MISC


904KB

Development Environment

  • Integrated Development Environments
  • Compilers
  • Emulators & Debuggers
  • Software Libraries
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Compilers
MPLAB-XC32
MPLAB XC32 Compiler ( MPLAB-XC32 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital Signal...

Learn More
Emulators & Debuggers
MPLAB ICD 4 In-Circuit Debugger
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs) and Microprocessors (MPUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a

...

Debug Features:

HW Data breakpoints:2
HW Program breakpoints:4
SW Program breakpoints:Unlimited
WDT Timeout Break:True


Learn More
Add To Cart
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor, the PICkit™ 3.

The MPLAB PICkit 4 now has Programmer-to-Go functionality for 8-bit, 16-bit and 32-bit PIC MCUs and dsPICs and also SAM MCU devices . The firmware update comes with MPLAB X IDE v5.30.


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and

...

Debug Features:

HW Data breakpoints:2
HW Program breakpoints:4
SW Program breakpoints:Unlimited
WDT Timeout Break:True


Learn More
Add To Cart
MPLAB(R) Snap In-Circuit Debugger
MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

Our most affordable debugger has power to impress.

The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs and MPUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a

...

Debug Features:

HW Data breakpoints:2
HW Program breakpoints:4
SW Program breakpoints:Unlimited
WDT Timeout Break:True


Learn More
Add To Cart
Software Libraries
MEC14xx Software Development Kit (SDK)

Learn More

Similar Devices

Product
Price 5K
$2.89
$2.89
$3.48
$1.85
$2.00
$2.13
$2.27
$2.38
$2.61
$3.06
$3.24
$4.16
$4.13

$4.42
$5.31

$3.03
$3.62
$3.39
$3.76
$3.93
$4.04
$5.90
$7.02
$5.84
$11.56
$1.66
$1.75
$2.53
$2.61
$2.66
$2.89
$5.84
$2.66
$2.89
$1.63
$2.66

$2.66
$2.66
$2.66
$2.92

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MEC1404-NU
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
MEC1404-NU-D0
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
MEC1404-SZ
0.128300
0.826923
144
WFBGA
9x9x0.8mm
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
