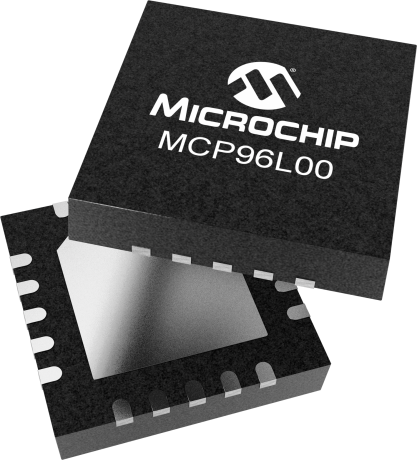

MCP96L00

Status: In Production

Features:

  • Provides a Complete "Plug and Play" Thermocouple Conditioning Solution
  • ±2°C/±4°C (Typ./Max.) Hot-Junction Temperature Measurement Accuracy
  • ±0.5°C/±1°C (Typ./Max.) Cold-Junction Temperature Measurement Accuracy
  • Operating Voltage Range: 2.7V to 5.5V
  • Operating Current: 500 μA (typical)
  • Package: 20-lead MQFN
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP96L00 is a fully integrated thermocouple Electromotive Force (EMF) to degree Celsius converter with integrated Cold-Junction compensation. The MCP96L00 supports 8 thermocouple types (K, J, T, N, S, E, B and R). The MCP96L00 provides user-programmable registers, adding design flexibility for various temperature sensing applications. The registers allow user-selectable settings, such as low-power modes for battery-powered applications, an adjustable digital filter for fast transient temperatures and four individually programmable temperature alert outputs, which can be used to detect multiple temperature zones.

Additional Features
  • Provides a Complete "Plug and Play" Thermocouple Conditioning Solution
  • ±2°C/±4°C (Typ./Max.) Hot-Junction Temperature Measurement Accuracy
  • ±0.5°C/±1°C (Typ./Max.) Cold-Junction Temperature Measurement Accuracy
  • I2C™ Compatible, 100 kHz supporting up to eight devices on I2C bus
  • Operating Voltage Range: 2.7V to 5.5V
  • Operating Current: 500 μA (typical)
  • Shutdown Current: 2 μA (typical)
  • Package: 20-lead MQFN
  • Typical Applications
    • Industrial process control equipment
    • Furnaces
    • Barbeque grill & smokers
    • HVAC systems
    • Ovens and cooktops

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP9600 Thermocouple EMF to C Converter
MCP9600 Thermocouple EMF to C Converter ( ADM00665 )

The MCP9600 Evaluation Board is used to digitize the Thermocouple EMF voltage to degree Celsius with +/-1C accuracy. Users can easily evaluate the all device features using a Type K thermocouple. The device also supports Types J, T, N, E, B, S and R. Each of these types are evaluated by replacing the Type K Thermocouple connector with the corresponding connectors (not included).

In...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP96L00-E/MX
0.069200
0.109589
20
MQFN
5x5x1.0mm
Matte Tin
e3
MCP96L00T-E/MX
0.069200
0.166970
20
MQFN
5x5x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from the Microchip Store

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
