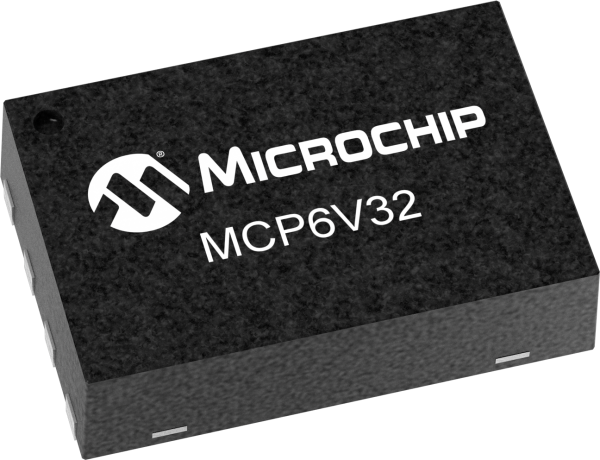

product primary image

MCP6V32

Status: In Production

Features:

  • Zero Drift architecture
  • Maximum offset of only 8 uV
  • Maximum offset drift of 50 nV/C
  • No 1/f noise
  • Low Power operation
  • Small 2x3 TDFN and MSOP packaging
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP6V3x family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These are low power devices, with a gain bandwidth product of 300 kHz. They are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.8V with a maximum quiescent current of only 34 uA. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • Zero Drift architecture
    • Maximum offset of only 8 uV
    • Maximum offset drift of 50 nV/C
    • No 1/f noise
    • Low Power operation
    • Small 2x3 TDFN and MSOP packaging
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
8
# per Package
2
Iq Typical (µA)
21
Iq Max (µA)
34
GBWP (kHz)
300
Operating Voltage Range (V)
1.8 to 5.5
Device Description
Linear High Precision Op Amps-Chopper Stabilized
Input Voltage Noise Density (nV/rt(Hz))
50
PSRR Min (dB)
120
CMRR Min (dB)
120
Vos/Ta (uV/°C)
0.05
Ib (pA)
5
Aol (dB)
120
PM (deg)
70
Isc (mA)
21
Rail-to-Rail
In/Out
Unity Gain Stable
Yes
Slew Rate V/uS
0.13

Documents

Jump to:

Data Sheets

06/24/2015
4535KB

Board Design Files

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6V32-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP6V32T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6V32T-E/MSVAO
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6V32T-E/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
