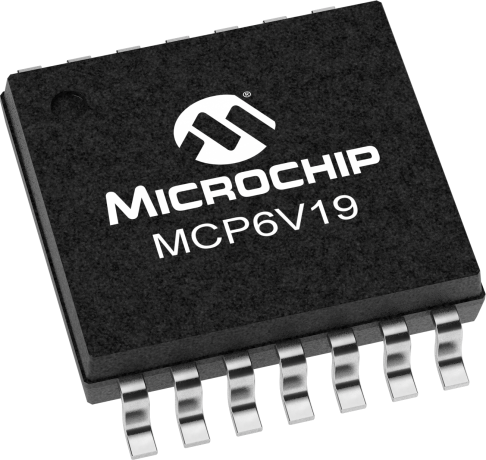

product primary image

MCP6V19

Status: In Production

Features:

  • Zero-Drift architecture
  • Maximum offset of only 25 uV
  • Maximum offset drift of 150 nV/C
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP6V16/7/9 family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These are low power devices, with a gain bandwidth product of 80 kHz. They are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.6V with a maximum quiescent current of only 11 uA.

Additional Features
  • Zero-Drift architecture
  • Maximum offset of only 25 uV
  • Maximum offset drift of 150 nV/C
  • No 1/f noise
  • Power consumption as low as 10.4 uW per channel
  • Small TSSOP packaging
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
25
# per Package
4
Iq Typical (µA)
6.5
Iq Max (µA)
11
GBWP (kHz)
80
Operating Voltage Range (V)
1.6 to 5.5
Device Description
Linear High Precision Op Amps-Chopper Stabilized
Input Voltage Noise Density (nV/rt(Hz))
102
PSRR Min (dB)
108
CMRR Min (dB)
109
Vos/Ta (uV/°C)
0.15
Ib (pA)
5
Aol (dB)
102
PM (deg)
70
Isc (mA)
17
Rail-to-Rail
In/Out
Unity Gain Stable
Yes
Slew Rate V/uS
0.03

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6V19-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6V19T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
