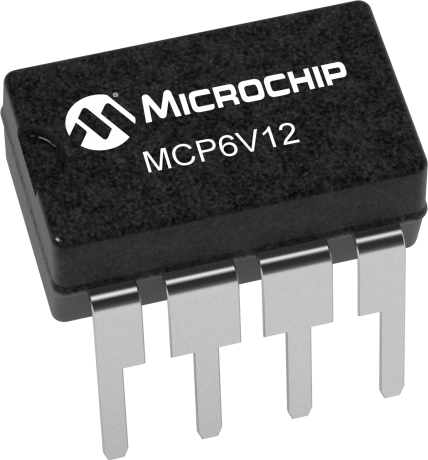

product primary image

MCP6V12

Status: In Production

Features:

  • Zero Drift architecture
  • Maximum offset of only 8 uV
  • Maximum offset drift of 50 nV/C
  • No 1/f noise
  • Low Power operation
  • Small 2x3 TDFN and MSOP packaging
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP6V1x family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These are low power devices, with a gain bandwidth product of 80 kHz. They are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.6V with a maximum quiescent current of only 11 uA. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • Zero Drift architecture
    • Maximum offset of only 8 uV
    • Maximum offset drift of 50 nV/C
    • No 1/f noise
    • Low Power operation
    • Small 2x3 TDFN and MSOP packaging
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
8
# per Package
2
Iq Typical (µA)
6.5
Iq Max (µA)
11
GBWP (kHz)
80
Operating Voltage Range (V)
1.6 to 5.5
Device Description
Linear High Precision Op Amps-Chopper Stabilized
Input Voltage Noise Density (nV/rt(Hz))
102
PSRR Min (dB)
118
CMRR Min (dB)
119
Vos/Ta (uV/°C)
0.05
Ib (pA)
5
Aol (dB)
112
PM (deg)
70
Isc (mA)
17
Rail-to-Rail
In/Out
Unity Gain Stable
Yes
Slew Rate V/uS
0.03
