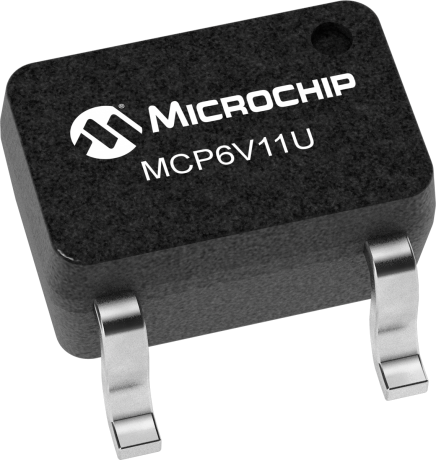

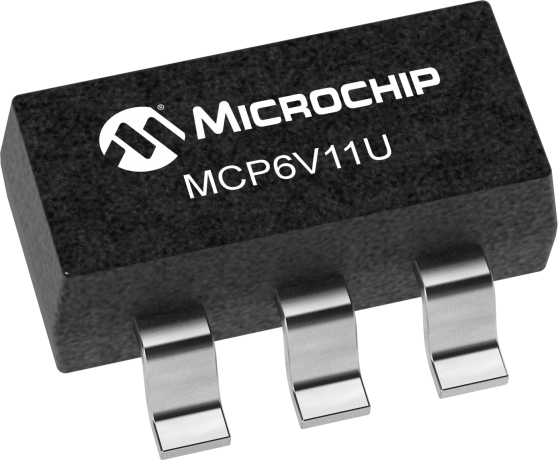

product primary image

MCP6V11U

Status: In Production

Features:

  • Zero Drift architecture
  • Maximum offset of only 8 uV
  • Maximum offset drift of 50 nV/C
  • No 1/f noise
  • Low Power operation
  • Small SC-70 and SOT-23 packaging
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP6V1x family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These are low power devices, with a gain bandwidth product of 80 kHz. They are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.6V with a maximum quiescent current of only 11 uA. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • Zero Drift architecture
    • Maximum offset of only 8 uV
    • Maximum offset drift of 50 nV/C
    • No 1/f noise
    • Low Power operation
    • Small SC-70 and SOT-23 packaging
    • AEC-Q100 Grade 1
    Parametrics
    Name
    Value
    Temp. Range (°C)
    -40°C to +125°C
    Vos Max (µV)
    8
    # per Package
    1
    Iq Typical (µA)
    7.5
    Iq Max (µA)
    11
    GBWP (kHz)
    80
    Operating Voltage Range (V)
    1.6 to 5.5
    Device Description
    Linear High Precision Op Amps-Chopper Stabilized
    Input Voltage Noise Density (nV/rt(Hz))
    102
    PSRR Min (dB)
    118
    CMRR Min (dB)
    119
    Vos/Ta (uV/°C)
    0.05
    Ib (pA)
    5
    Aol (dB)
    112
    PM (deg)
    70
    Isc (mA)
    17
    Rail-to-Rail
    In/Out
    Unity Gain Stable
    Yes
    Slew Rate V/uS
    0.03

    Documents

    Jump to:

    Data Sheets


    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (grams)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MCP6V11UT-E/OT
    0.016000
    0.049000
    5
    SOT-23
    -
    Matte Tin
    e3
    MCP6V11UT-E/LT
    0.006300
    0.033333
    5
    SC70
    -
    NiPdAu
    e4
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
