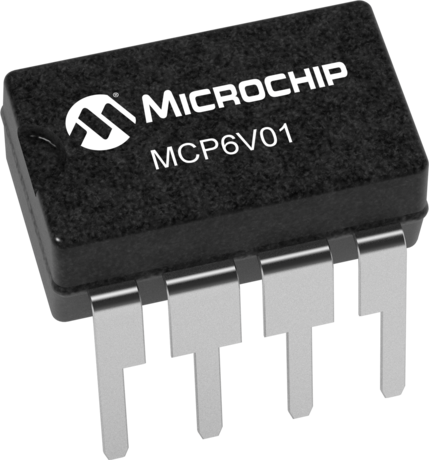

product primary image

MCP6V01

Status: In Production

Features:

  • VOS Drift: ±50 nV/°C (maximum)
  • VOS: ±2 µV (maximum)
  • AOL: 130 dB (minimum)
  • PSRR: 130 dB (minimum)
  • CMRR: 130 dB (minimum)
  • Eni: 2.5 µVP-P (typical), f = 0.1 Hz to 10 Hz
  • Eni: 0.79 µVp-p (typical), f = 0.01 Hz to 1 Hz
  • IQ: 300 µA/amplifier (typical)
  • Wide Supply Voltage Range: 1.8V to 5.5V
  • Rail-to-Rail Input/Output
  • Gain Bandwidth Product: 1.3 MHz (typical)
  • Unity Gain Stable
  • Available in Single and Dual
  • Extended Temperature Range: -40°C to +125°C
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP6V01/2/3 family of operational amplifiers has input offset voltage correction for very low offset and offset drift. These devices have a wide bandwidth product and strongly reject switching noise. They are unity gain stable, have no 1/f noise, and have good PSRR and CMRR. These products operate with a single supply voltage as low as 1.8V and are designed in an advanced CMOS process. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • High DC Precision:
      • VOS Drift: ±50 nV/°C (maximum)
      • VOS: ±2 µV (maximum)
      • AOL: 130 dB (minimum)
      • PSRR: 130 dB (minimum)
      • CMRR: 130 dB (minimum)
      • Eni: 2.5 µVP-P (typical), f = 0.1 Hz to 10 Hz
      • Eni: 0.79 µVp-p (typical), f = 0.01 Hz to 1 Hz
    • Low Power and Supply Voltages:
      • IQ: 300 µA/amplifier (typical)
      • Wide Supply Voltage Range: 1.8V to 5.5V
    • Easy to Use:
      • Rail-to-Rail Input/Output
      • Gain Bandwidth Product: 1.3 MHz (typical)
      • Unity Gain Stable
      • Available in Single and Dual
    • Extended Temperature Range: -40°C to +125°C
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
2
# per Package
1
Iq Typical (µA)
300
Iq Max (µA)
400
GBWP (kHz)
1300
Operating Voltage Range (V)
1.8 to 5.5
Device Description
Linear High Precision Op Amps-Auto Zero
Input Voltage Noise Density (nV/rt(Hz))
120
PSRR Min (dB)
130
CMRR Min (dB)
130
Vos/Ta (uV/°C)
0.05
Ib (pA)
1
Aol (dB)
145
PM (deg)
65
Isc (mA)
22
Rail-to-Rail
In/Out
Unity Gain Stable
Yes
Slew Rate V/uS
0.5

Documents

Jump to:

Data Sheet

12/16/2008
999KB

Application Notes

Download All

Product Line Card

Spice Model

User Guides

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MCP6V01 Input Offset Demo Board
MCP6V01 Input Offset Demo Board ( MCP6V01DM-VOS )

The MCP6V01 Input Offset Demo Board is intended to provide a simple means to measure the MCP6V01/2/3 op amps input offset voltage (VOS) under a variety of bias conditions. This VOS includes the specified input offset voltage value found in the data sheet plus changes due to power supply voltage (PSRR), common mode voltage (CMRR), output voltage (AOL) and temperature (IVOS/ITA).

Learn More
Add To Cart
MCP6V01 Thermocouple Auto-Zero Ref Design
MCP6V01 Thermocouple Auto-Zero Ref Design ( MCP6V01RD-TCPL )

The MCP6V01 Thermocouple Auto-Zeroed Reference Design demonstrates how to use a difference amplifier system to measure electromotive force (EMF) voltage at the cold junction of thermocouple in order to accurately measure temperature at the hot junction. This can be done by using the MCP6V01 auto-zeroed op amp because of its ultra low offset voltage (VOS) and high common mode rejection ratio...

Learn More
Add To Cart
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6V01T-E/MNY
0.014300
0.248485
8

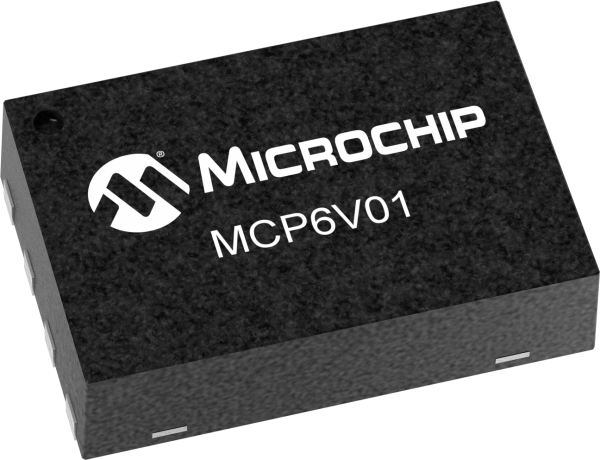

TDFN
2x3x0.8mm
NiPdAu
e4
MCP6V01-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6V01-E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6V01T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6V01T-E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
