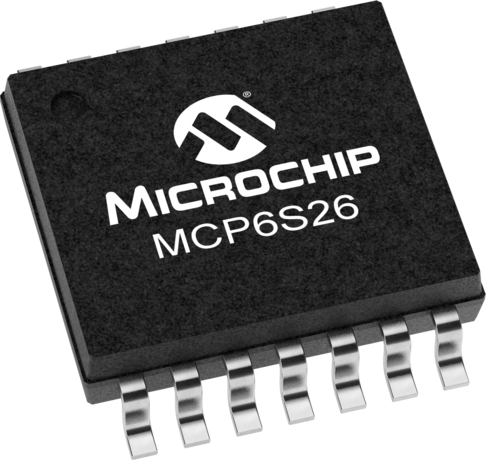

product primary image

MCP6S26

Status: In Production

Features:

  • SPI Bus to Control Gain and Select Input Channel
  • Gain Steps of 1, 2, 4, 5, 8, 10, 16 and 32 V/V
  • -3 dB Bandwidth of 2 to 12 MHz
  • Gain Error < 1%
  • Rail-to-Rail Input and Output
  • Low Noise: 10 nV/rHz
  • Low Supply Current: 1.1 mA (typical)
  • Single Supply 2.5V to 5.5V
  • Industrial Temperature Range: -40°C to 85°C
  • 14-pin TSSOP Package
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP6S21, MCP6S22, MCP6S26, and MCP6S28 Programmable Gain Amplifiers offer 1, 2, 6 or 8 input channels respectively and eight steps of gain. These devices are programmable over an SPI bus and thus add gain control and input channel selection to the embedded control system. This is all achieved in one simple integration that allows for considerably greater bandwidth at a low supply current.

Additional Features
    • SPI Bus to Control Gain and Select Input Channel
    • Gain Steps of 1, 2, 4, 5, 8, 10, 16 and 32 V/V
    • -3 dB Bandwidth of 2 to 12 MHz
    • Gain Error < 1%
    • Rail-to-Rail Input and Output
    • Low Noise: 10 nV/rHz
    • Low Supply Current: 1.1 mA (typical)
    • Single Supply 2.5V to 5.5V
    • Industrial Temperature Range: -40°C to 85°C
    • 14-pin TSSOP Package

Parametrics
Name
Value
Temp Range (°C)
2
Vref
Yes
Vos (µV)
275
Channels
6
Noise (nV/√Hz)
10
Iq Typical (mA)
1.1
Gain Steps
8
-3dB BW (MHz)
2 to 12
Interface
SPI
Operating Voltage Range (V)
2.5 to 5.5

Documents

Jump to:

Data Sheet

02/05/2013
724KB

Product Line Card

Product Line Documents

09/05/2003
93KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP6S2x PGA Evaluation Board
MCP6S2x PGA Evaluation Board ( MCP6S2XEV )

The MCP6S2X PGA Evaluation Board (Rev. 4) features the MCP6S21/91 and MCP6S26 devices. The PGA devices interface to a PIC16F676 providing versatile selection of input channels and gains to evaluate device performance. The board supports multiple input signal sources and two devices are cascaded to produce a gain between 1 V/V and 1024 V/V.

Learn More
Add To Cart

Similar Devices

Product
Switching Channels
-3dB Bw (MHz)
Iq Typical (mA)
Vos (µV)
Price 5K
1
2 to 12
1.1
275
$0.80
2
2 to 12
1.1
275
$0.92
6
2 to 12
1.1
275
$1.46
8
2 to 12
1.1
275
$1.62
1
1 to 18
1
4000
$0.62
2
1 to 18
1
4000
$0.73
2
1 to 18
1
4000
$0.92

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6S26-I/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6S26T-I/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6S26-I/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6S26T-I/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6S26-I/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
