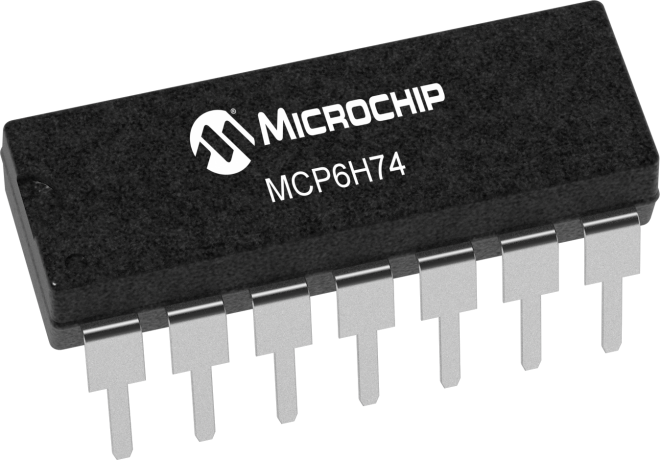

product primary image

MCP6H74

Status: In Production

Features:

  • Input Offset Voltage: ±4 mV (max)
  • Quiescent Current: 480 µA (typical)
  • Common Mode Rejection Ratio: 103 dB (typical)
  • Power Supply Rejection Ratio: 105 dB (typical)
  • Rail-to-Rail Output
  • Single Supply Voltage Operation: 3.5V to 12V
  • DualSupply Voltage Operation: +/-1.75V to +/-6V
  • Gain Bandwidth Product: 2.7 MHz (typical)
  • Slew Rate: 0.9V/µs (typical)
  • Unity Gain Stable
  • Extended Temperature Range: -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Microchip’s MCP6H71/2/4 family of operational amplifiers (op amps) has a wide supply voltage range of 3.5V to 12V and rail-to-rail output operation. This family is unity gain stable and has a gain bandwidth product of 2.7 MHz (typical). These devices operate with a single-supply voltage as high as 12V, while only drawing 480 µA/amplifier (typical) of quiescent current. The MCP6H71/2/4 family is offered in single (MCP6H71), dual (MCP6H72) and quad (MCP6H74) configurations. All devices are fully specified in extended temperature range from -40°C to +125°C.

Additional Features
    • Input Offset Voltage: ±4 mV (max)
    • Quiescent Current: 480 µA (typical)
    • Common Mode Rejection Ratio: 103 dB (typical)
    • Power Supply Rejection Ratio: 105 dB (typical)
    • Rail-to-Rail Output
    • Supply Voltage Range
      • Single Supply Voltage Operation: 3.5V to 12V
      • DualSupply Voltage Operation: +/-1.75V to +/-6V
    • Gain Bandwidth Product: 2.7 MHz (typical)
    • Slew Rate: 0.9V/µs (typical)
    • Unity Gain Stable
    • Extended Temperature Range: -40°C to +125°C
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
4000
# per Package
4
Iq Typical (µA)
480
Iq Max (µA)
600
GBWP (kHz)
2700
Operating Voltage Range (V)
3.5 to 12
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
16
PSRR Min (dB)
105
CMRR Min (dB)
103
Vos/Ta (uV/°C)
2.5
Ib (pA)
10
Aol (dB)
120
PM (deg)
57
Isc (mA)
53
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
2

Documents

Jump to:

Data Sheet

Spice Model


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6H74-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6H74T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6H74T-E/STVAO
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6H74-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6H74T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
