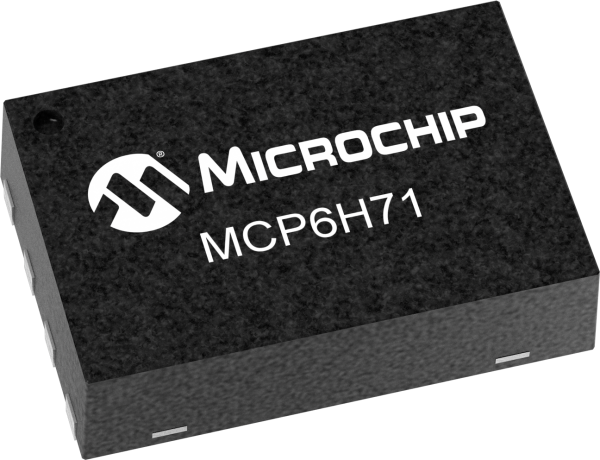

Microchip’s MCP6H71/2/4 family of operational amplifiers (op amps) has a wide supply voltage range of 3.5V to 12V and rail-to-rail output operation. This family is unity gain stable and has a gain bandwidth product of 2.7 MHz (typical). These devices operate with a single-supply voltage as high as 12V, while only drawing 480 µA/amplifier (typical) of quiescent current. The MCP6H71/2/4 family is offered in single (MCP6H71), dual (MCP6H72) and quad (MCP6H74) configurations. All devices are fully specified in extended temperature range from -40°C to +125°C.

• Input Offset Voltage: ±4 mV (max)
• Quiescent Current: 480 µA (typical)
• Common Mode Rejection Ratio: 103 dB (typical)
• Power Supply Rejection Ratio: 105 dB (typical)
• Rail-to-Rail Output
• Supply Voltage Range
  • Single Supply Voltage Operation: 3.5V to 12V
  • DualSupply Voltage Operation: +/-1.75V to +/-6V
• Gain Bandwidth Product: 2.7 MHz (typical)
• Slew Rate: 0.9V/µs (typical)
• Unity Gain Stable
• Extended Temperature Range: -40°C to +125°C
