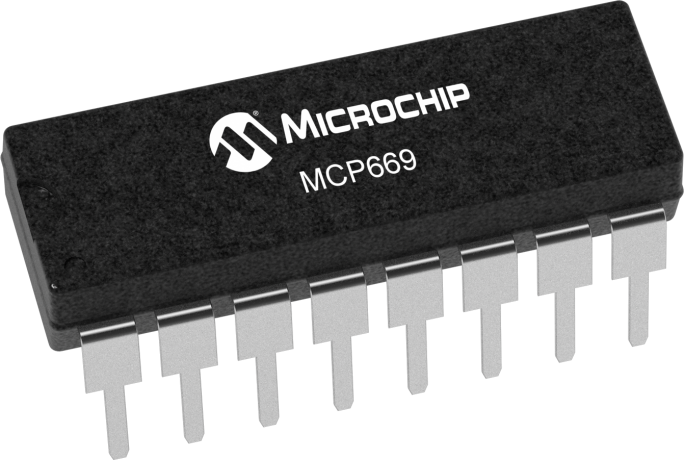

product primary image

MCP669

Status: In Production

Features:

  • Two Chip Select Pins
  • High Gain Bandwidth of 60 MHz
  • Short Circuit Current of 90 mA
  • Noise: 6.8nV/rtHz
  • Rail-to-Rail Output
  • Slew Rate: 32 V/us
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP66x family of operational amplifiers features high gain bandwidth product, and high output short circuit current. Select devices also offer a Chip Select pin that supports a low power mode of operation. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail.

Additional Features
    • Two Chip Select Pins
    • High Gain Bandwidth of 60 MHz
    • Short Circuit Current of 90 mA
    • Noise: 6.8nV/rtHz
    • Rail-to-Rail Output
    • Slew Rate: 32 V/us
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
8000
# per Package
4
Iq Typical (µA)
6000
Iq Max (µA)
9000
GBWP (kHz)
60000
Operating Voltage Range (V)
2.5 to 5.5
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
6.8
PSRR Min (dB)
61
CMRR Min (dB)
66
Vos/Ta (uV/°C)
2
Ib (pA)
6
Aol (dB)
126
PM (deg)
65
Isc (mA)
90
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
32

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

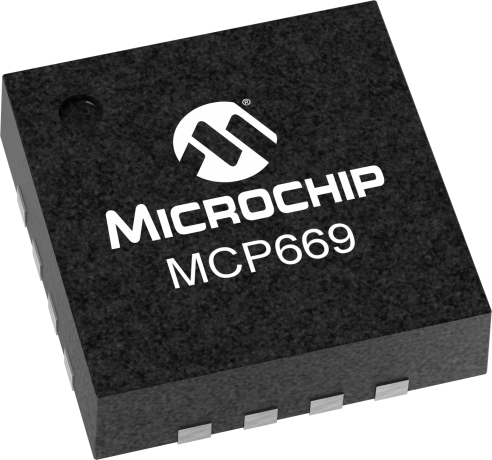

MCP669-E/ML
0.041700
0.076923
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP669T-E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
