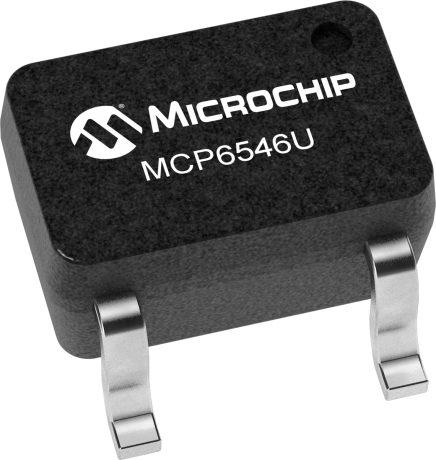

MCP6546U

Status: In Production

Features:

  • Open Drain Output
  • Output can be level shifted up to 9V via external pull-up resistor
  • 4us Propogation Delay
  • Low Operating Voltage, 1.6V to 5.5V
  • Low Operating Current, 600nA (typical)
  • Small 5-pin SOT-23 Package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP6546U is a open drain, single comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp.

Additional Features
    • Open Drain Output
    • Output can be level shifted up to 9V via external pull-up resistor
    • 4us Propogation Delay
    • Low Operating Voltage, 1.6V to 5.5V
    • Low Operating Current, 600nA (typical)
    • Small 5-pin SOT-23 Package
Parametrics
Name
Value
Temp Range (°C)
-40°C to +125°C
IQ Typical (µA))
1
Vos Max (µV)
7000
Typical Propagation Delay (ns)
4000
# per Package
1
Operating Voltage Range (V)
1.6 to 5.5
