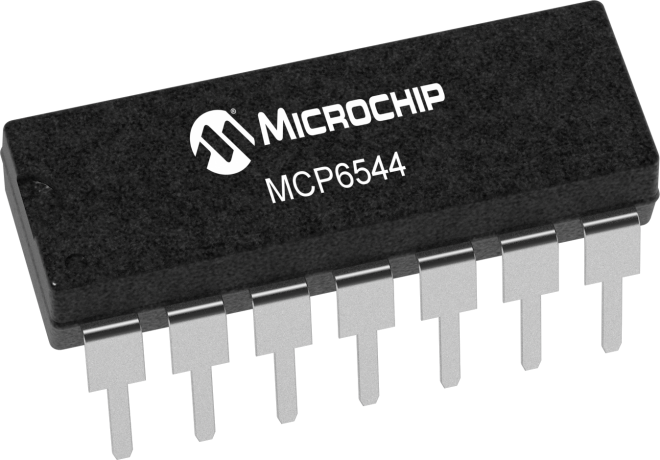

product primary image

MCP6544

Status: In Production

Features:

  • Quad, Push-Pull Outputs
  • 4us Propogation Delay
  • Low Operating Voltage, 1.6V to 5.5V
  • Low Operating Current, 600nA (typical)
  • Rail-to-Rail Input/Output
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP6544 is a Push-pull, quad comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp. This device is offered in the 16 lead PDIP, SOIC and 14 lead TSSOP package. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • Quad, Push-Pull Outputs
    • 4us Propogation Delay
    • Low Operating Voltage, 1.6V to 5.5V
    • Low Operating Current, 600nA (typical)
    • Rail-to-Rail Input/Output
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp Range (°C)
-40°C to +125°C
IQ Typical (µA))
1
Vos Max (µV)
7000
Typical Propagation Delay (ns)
4000
# per Package
4
Operating Voltage Range (V)
1.6 to 5.5

Documents

Jump to:
×

Data Sheet

MCP6541/1R/1U/2/3/4 Data Sheet
12/19/2011
1583KB

Application Notes

Download All
AN1016 - Detecting Small Capacitive Sensors Using the MCP6291 and PIC16F690 Devices
04/13/2006
630KB
AN895 - Oscillator Circuits for RTD Temperature Sensors
05/17/2004
418KB
AN929 - Temperature Measurement Circuits for Embedded Applications
05/06/2004
448KB
AN990 - Analog Sensor Conditioning Circuits - An Overview
03/28/2010
262KB

Brochures

Analog & Interface Guide (Volume 2)
10/11/2005
1067KB
Automotive Recommended Product Selector Guide
09/16/2014
7598KB
PGA, Operational Amplifiers and Comparators Design Guide
12/08/2009
640KB
Quick Guide to Microchip Development Tools
09/04/2018
10494KB
Signal Chain Design Guide
11/10/2012
3229KB

Product Line Card

Analog & Interface Product Selector Guide
01/03/2019
4427KB

Brochures

Low Power Analog Solutions
05/16/2011
120KB

Spice Model

SPICE Model for MCP6541/1R/1U/2/3/4 Devices
09/14/2016
3KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
SOIC14 Eval Board
SOIC14 Eval Board ( SOIC14EV )

The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6544-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6544-I/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6544T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6544T-I/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6544-E/STVAO
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6544T-E/STVAO
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6544-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6544-I/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6544T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6544T-I/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6544-E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP6544-I/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
