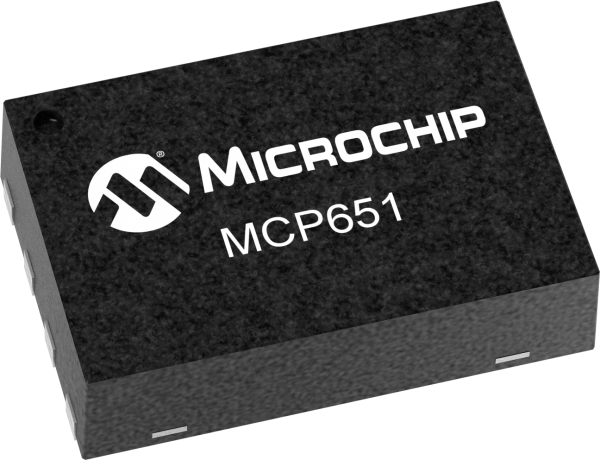

product primary image

MCP651

Status: In Production

Features:

  • mCal Technology: On chip self-calibration
  • 50MHz GBWP
  • High Output Drive Current
  • Chip Select/Calibration Pin
  • Rail-to-Rail Output
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP65x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • mCal Technology: On chip self-calibration
    • 50MHz GBWP
    • High Output Drive Current
    • Chip Select/Calibration Pin
    • Rail-to-Rail Output
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
200
# per Package
1
Iq Typical (µA)
6000
Iq Max (µA)
9000
GBWP (kHz)
50000
Operating Voltage Range (V)
2.5 to 5.5
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
7.5
PSRR Min (dB)
61
CMRR Min (dB)
66
Vos/Ta (uV/°C)
2.5
Ib (pA)
6
Aol (dB)
114
PM (deg)
65
Isc (mA)
95
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
30

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP651 Input Offset Evaluation Board
MCP651 Input Offset Evaluation Board ( MCP651EV-VOS )
(Not Recommended for new design)

The MCP651 Input Offset Evaluation Board is intended to provide a simple means to measure the MCP651 Input Offset Evaluation Board op amp’s input offset voltage under a variety of operating conditions. The measured input offset voltage (VOST) includes the input offset voltage specified in the data sheet (VOS) plus changes due to: power supply voltage (PSRR), common mode voltage (CMRR),...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP651T-E/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
MCP651-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP651T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP651ST-E/OT
0.017000
0.066667
5
SOT-23
-
Matte Tin
e3
MCP651ST-E/OTVAO
0.017000
0.066667
5
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
