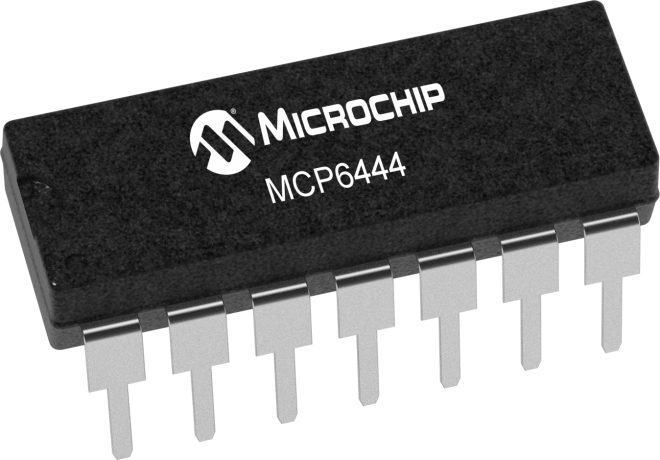

product primary image

MCP6444

Status: In Production

Features:

  • Low Quiescent Current: 450 nA (typical)
  • Gain Bandwidth Product: 9 kHz (typical)
  • Supply Voltage Range: 1.4V to 6.0V
  • Rail-to-Rail Input and Output
  • Unity Gain Stable
  • Slew Rate: 3V/ms (typical)
  • Extended Temperature Range: -40°C to +125°C
  • Available in SOIC and TSSOP
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP6444 device is a quad nanopower operational amplifier (op amp), which has low quiescent current (450 nA, typical) and rail-to-rail input and output operation. This op amp is unity gain stable and has a gain bandwidth product of 9 kHz (typical). These devices operate with a single supply voltage as low as 1.4V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6444 op amp is designed with Microchip’s advanced CMOS process and offered in the TSSOP and SOIC packages. All devices are available in the extended temperature range, with a power supply range of 1.4V to 6.0V.

Additional Features
    • Low Quiescent Current: 450 nA (typical)
    • Gain Bandwidth Product: 9 kHz (typical)
    • Supply Voltage Range: 1.4V to 6.0V
    • Rail-to-Rail Input and Output
    • Unity Gain Stable
    • Slew Rate: 3V/ms (typical)
    • Extended Temperature Range: -40°C to +125°C
    • Available in SOIC and TSSOP
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
4500
# per Package
4
Iq Typical (µA)
0.45
Iq Max (µA)
0.65
GBWP (kHz)
9
Operating Voltage Range (V)
1.4 to 6.0
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
190
PSRR Min (dB)
65
CMRR Min (dB)
60
Vos/Ta (uV/°C)
2.5
Ib (pA)
1
Aol (dB)
110
PM (deg)
65
Isc (mA)
22
Rail-to-Rail
In/Out
Unity Gain Stable
Yes
Slew Rate V/uS
0.003

Documents

Jump to:

Data Sheet

Spice Model


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6444-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6444T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6444T-E/STVAO
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6444-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6444T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
