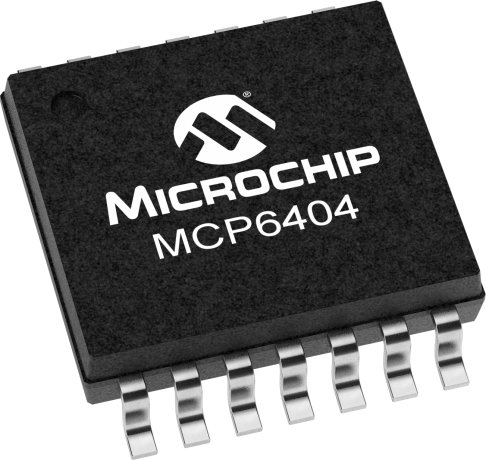

product primary image

MCP6404

Status: In Production

Features:

  • Low Quiescent Current: 45 µA (typical)
  • Gain Bandwidth Product: 1 MHz (typical)
  • Rail-to-Rail Input and Output
  • Supply Voltage Range: 1.8V to 6.0V
  • Unity Gain Stable
  • E Temp: -40°C to +125°C
  • H Temp: -40°C to +150°C
  • No Phase Reversal
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The Microchip Technology Inc. MCP6404 operational amplifiers (op amps) have low quiescent current (45 µA, typical) and rail-to-rail input and output operation. This device is unity gain stable and has a gain bandwidth product of 1 MHz (typical). The MCP6404 is designed with Microchip’s advanced CMOS process. It is offered in SOIC and TSSOP packages for -40°C to +125°C temperature range and in SOIC for -40°C to +150°C temperature range with a power supply range of 1.8V to 6.0V. These features make the MCP6402 well suited for single-supply, battery-powered, automotive and industrial applications.

Additional Features
    • Low Quiescent Current: 45 µA (typical)
    • Gain Bandwidth Product: 1 MHz (typical)
    • Rail-to-Rail Input and Output
    • Supply Voltage Range: 1.8V to 6.0V
    • Unity Gain Stable
    • Extended Temperature Range:
      • E Temp: -40°C to +125°C
      • H Temp: -40°C to +150°C
    • No Phase Reversal
    Parametrics
    Name
    Value
    Temp. Range (°C)
    -40°C to +150°C
    Vos Max (µV)
    4500
    # per Package
    4
    Iq Typical (µA)
    45
    Iq Max (µA)
    70
    GBWP (kHz)
    1000
    Operating Voltage Range (V)
    1.8 to 6.0
    Device Description
    Linear Op Amps
    Input Voltage Noise Density (nV/rt(Hz))
    28
    PSRR Min (dB)
    63
    CMRR Min (dB)
    63
    Vos/Ta (uV/°C)
    2
    Ib (pA)
    1
    Aol (dB)
    110
    PM (deg)
    65
    Isc (mA)
    5
    Rail-to-Rail
    In/Out
    Unity Gain Stable
    Yes
    Slew Rate V/uS
    0.5

    Documents

    Jump to:
    ×

    Data Sheet

    MCP6401/1R/1U/2/4/6/7/9 Data Sheet
    09/14/2011
    2055KB

    Application Notes

    Download All
    AN1177 - Op Amp Precision Design: DC Errors
    03/12/2008
    269KB
    AN1177 - Op Amp Precision Design: DC Errors (Japanese)
    12/17/2008
    672KB

    Product Line Card

    Analog & Interface Product Selector Guide
    01/03/2019
    4427KB

    Spice Model

    SPICE Model for MCP6401/1R/1U/2/4/6/7/9 Devices
    05/14/2013
    2KB

    Video

    MCP6XXX Amplifier Eval Board - 4 as an Integrator Demo Video
    07/20/2010
    37460KB
    MCP6XXX as an Inverting Amplifier 1 Eval board Video
    07/20/2010
    37546KB
    MCP6XXX Eval Board 1- Voltage Follower Video
    07/20/2010
    35976KB
    MCP6XXX Eval board 2 as a Summing Amplifier Video
    07/20/2010
    35562KB
    MCP6XXX Eval board 3 as a Difference Amplifier Video
    07/22/2010
    36624KB

    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MCP6404-E/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP6404T-E/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP6404T-E/STVAO
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP6404T-H/SLVAO
    0.143200
    0.325000
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    MCP6404-E/SL
    0.143200
    0.280702
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    MCP6404-H/SL
    0.143200
    0.280702
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    MCP6404T-E/SL
    0.143200
    0.325000
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    MCP6404T-H/SL
    0.143200
    0.325000
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
