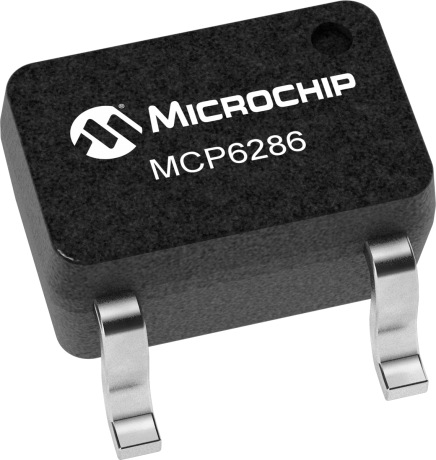

product primary image

MCP6286

Status: In Production

Features:

  • Ultra Low Noise: 5.4 nV/rt(Hz)
  • Gain-Bandwidth Product: 3.5 MHz
  • Low Quiescent Current: 540 µA/amplifier (typical)
  • Low Input Offset Voltage: 1.5 mV (max.)
  • Unity Gain Stable
  • Rail to Rail Output
  • Extended Temperature Range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP6286 operational amplifier offers low noise, low power and rail-to-rail output operation. This combination of features makes this product well suited for single supply, low noise, battery-powered applications. The MCP6286 operational amplifier is offered in a space saving 5-pin SOT-23 package.

Additional Features
    • Ultra Low Noise: 5.4 nV/rt(Hz)
    • Gain-Bandwidth Product: 3.5 MHz
    • Low Quiescent Current: 540 µA/amplifier (typical)
    • Low Input Offset Voltage: 1.5 mV (max.)
    • Unity Gain Stable
    • Rail to Rail Output
    • Extended Temperature Range
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
1500
# per Package
1
Iq Typical (µA)
540
Iq Max (µA)
720
GBWP (kHz)
3500
Operating Voltage Range (V)
2.2 to 5.5
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
5.4
PSRR Min (dB)
80
CMRR Min (dB)
76
Vos/Ta (uV/°C)
1
Ib (pA)
1
Aol (dB)
120
PM (deg)
60
Isc (mA)
20
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
2

Documents

Jump to:
×

Data Sheet

MCP6286 Data Sheet
08/10/2009
406KB

Application Notes

Download All
AN1228 - Op Amp Precision Design: Random Noise
09/02/2008
588KB
AN1297 - Microchip's Op Amp SPICE Macro Models
09/25/2009
280KB
AN1316 - Using Digital Potentiometers for Programmable Amplifier Gain
04/14/2010
441KB
AN679 - Temperature Sensing Technologies
08/10/1999
177KB
AN682 - Using Single Supply Operational Amplifiers in Embedded Systems
07/07/2011
169KB
AN792 - A Method to Determine How Much Power a SOT23 Can Dissipate in an Application
07/18/2001
523KB
AN990 - Analog Sensor Conditioning Circuits - An Overview
03/28/2010
262KB

Brochures

Automotive Recommended Product Selector Guide
09/16/2014
7598KB
PGA, Operational Amplifiers and Comparators Design Guide
12/08/2009
640KB
Signal Chain Design Guide
11/10/2012
3229KB

Product Line Card

Analog & Interface Product Selector Guide
01/03/2019
4427KB

Spice Model

SPICE Model for MCP6286 Device
05/14/2013
2KB

Video

MCP6XXX Amplifier Eval Board - 4 as an Integrator Demo Video
07/20/2010
37460KB
MCP6XXX as an Inverting Amplifier 1 Eval board Video
07/20/2010
37546KB
MCP6XXX Eval Board 1- Voltage Follower Video
07/20/2010
35976KB
MCP6XXX Eval board 2 as a Summing Amplifier Video
07/20/2010
35562KB
MCP6XXX Eval board 3 as a Difference Amplifier Video
07/22/2010
36624KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6286T-E/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP6286T-E/OTVAO
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
