Status: In Production

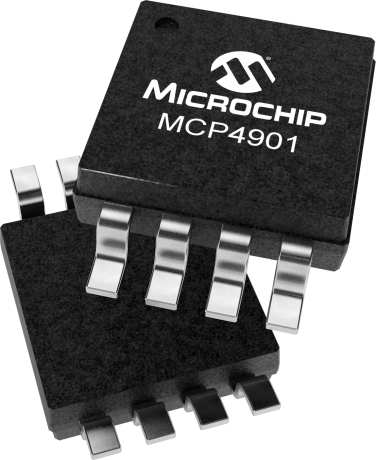

MCP4901 is a single channel, 8-bit DAC with an external voltage reference and SPI interface. It offers high accuracy and low power consumption and is available in various packages.
The MCP4901 device is a part of the MCP4901/MCP4911/MCP4921 product family, which are single channel 8-bit/10-bit/12-bit DACs which use external voltage reference (VREF). These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery-powered applications. If two outputs are needed then the MCP4902/4912/4922 dual channel product family can be used.
The MSOP-10 and MSOP-8 Evaluation Board is a bond-out board that allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in any of the following packages:
• MSOP (8- and 10-pin )
• DIP (10 pin)
• The Evaluation Board can be used as a MSOP- to DIP- converter
• The kit contains 10 blank...
For pricing and availability, contact Microchip Local Sales.
