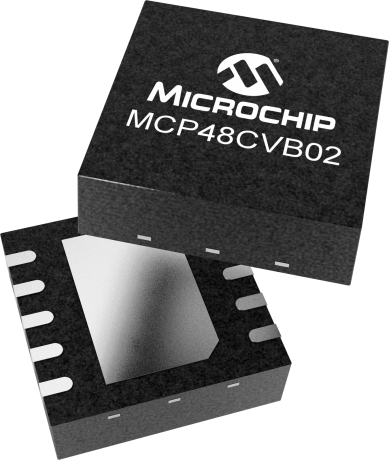

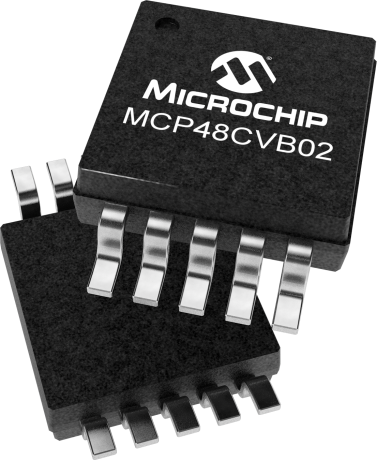

MCP48CVB02 is a dual channel, 8-bit, buffered voltage output Digital-to-Analog Converter
(DAC) with volatile memory and an SPI Compatible Serial Interface. This device
provides four different voltage reference options: device VDD, external VREF
(Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral
Non-Linearity (INL) with low power consumption and fast settling time of
6µs. It is suitable for consumer and
industrial applications, such as set point or offset trimming, sensor
calibrations and motor control applications.
For different resolutions and number of output channels, please check out our other parts in the MCP48CVBxx family.
The MSOP-10 and MSOP-8 Evaluation Board is a bond-out board that allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in any of the following packages:
• MSOP (8- and 10-pin )
• DIP (10 pin)
• The Evaluation Board can be used as a MSOP- to DIP- converter
• The kit contains 10 blank...
For pricing and availability, contact Microchip Local Sales.
