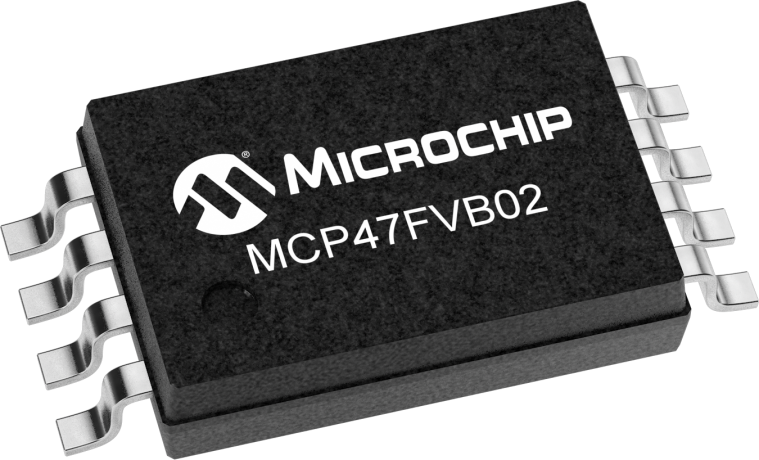

product primary image

MCP47FVB02

Status: In Production

Features:

  • 8-bit Resolutions
  • Rail-to-Rail Output
  • Fast Settling Time: 6 µs (typ)
  • DAC Voltage Reference Options: Device VDD External VREF (buffered or unbuffered) Internal Bandgap (1.22V typ)
  • Device VDD
  • External VREF (buffered or unbuffered)
  • Internal Bandgap (1.22V typ)
  • Unity (1x)
  • 2x (when not using internal VDD as voltage source)
  • Disconnects output buffer (High Impedance)
  • Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)
  • Normal Operation: 380µA (max)
  • Power Down Operation: 650nA (typ)
  • Single-Supply Operation: 2.7V to 5.5V
  • I2C™ Interface
  • 8-lead TSSOP Package
  • Extended Temperature Range: -40°C to +125°C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

MCP47FVB02 is a dual channel 8-bit, voltage output Digital-to-Analog Converter with volatile memory and an I2C compatible serial interface. This device provides four different voltage reference options: device VDD, external VREF (buffered or unbuffered) and internal bandgap. It offeres high AC performance, low power consumption and fast settling time, which makes it suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications, and portable instrument.

For different resolutions and number of output channels, please check out our other parts in the MCP47FVBxx family.


Additional Features
    • 8-bit Resolutions
    • Rail-to-Rail Output
    • Fast Settling Time: 6 µs (typ)
    • DAC Voltage Reference Options:
      • Device VDD
      • External VREF (buffered or unbuffered)
      • Internal Bandgap (1.22V typ)
    • Output Gain Options:
      • Unity (1x)
      • 2x (when not using internal VDD as voltage source)
    • Power-Down modes:
      • Disconnects output buffer (High Impedance)
      • Selection of VOUT pull-down resistors (100 kΩ or 1 kΩ)
    • Low Power Consumption
      • Normal Operation: 380µA (max)
      • Power Down Operation: 650nA (typ)
    • Single-Supply Operation: 2.7V to 5.5V
    • I2C™ Interface
    • 8-lead TSSOP Package
    • Extended Temperature Range: -40°C to +125°C
Parametrics
Name
Value
Typical Standby Current (µA)
0.65
Typical Operating Current (µA)
260
Resolution (Bits)
8
DACs per Package
2
Vref
Int,VDD,Ext
Output Settling Time (µs)
6
DNL (LSB)
±0.25
Temp. Range (°C)
-40°C to +125°C
Interface
I²C™

Documents

Jump to:

Data Sheet

05/06/2015
1012KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
SOIC14 Eval Board
SOIC14 Eval Board ( SOIC14EV )

The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages.

Learn More
Add To Cart
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart
20-Pin TSSOP and SSOP Evaluation Board
20-Pin TSSOP and SSOP Evaluation Board ( TSSOP20EV )

The 20-Pin TSSOP and SSOP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in any of the following 20-pin packages: TSSOP-20/16/14/8 and SSOP-20.

The board has a 6-pin header (PICkit Serial, ICSP, etc.) that can be easily jumpered to the device’s desired pins to communicate with the device (using PICkit...

Learn More
Add To Cart

Similar Devices

Product
Resolution
DACs per Package
Vref
Price 5K
8
1
Ext,VDD
$0.52
10
1
Ext
$0.60
12
1
Ext
$0.70
12
1
Ext
$0.70
12
4
Int,VDD
$1.37
6
1
Ext
$0.42
8
1

$0.64
8
2

$0.99
10
1

$0.84
10
2

$1.38
12
1

$1.18
12
2

$1.92
8
1

$0.53
8
2

$0.88
10
1

$0.73
10
2

$1.20
12
1

$1.07
12
2

$1.76
6
1
Ext,VDD
$0.49
8
1
Int,VDD,Ext
$0.60
8
2
Int,VDD,Ext
$0.94
10
1
Int,VDD,Ext
$0.74
10
2
Int,VDD,Ext
$1.28
12
1
Int,VDD,Ext
$1.03
12
2
Int,VDD,Ext
$1.78
8
1
Int,VDD,Ext
$0.49
8
2
Int,VDD,Ext
$0.84
10
1
Int,VDD,Ext
$0.64
10
2
Int,VDD,Ext
$1.11
12
1
Int,VDD,Ext
$0.94
12
2
Int,VDD,Ext
$1.63
8
1
Int
$0.82
8
2
Int
$1.07
10
1
Int
$1.17
10
2
Int
$1.53
12
1
Int
$1.66
12
2
Int
$2.14
8
1

$0.64
8
2

$0.99
10
1

$0.84
10
2

$1.38
12
1

$1.18
12
2

$1.92
8
1

$0.53
8
2

$0.88
10
1

$0.73
10
2

$1.20
12
1

$1.07
12
2

$1.76
8
1
Int,VDD,Ext
$0.60
8
2
Int,VDD,Ext
$0.94
10
1
Int,VDD,Ext
$0.74
10
2
Int,VDD,Ext
$1.28
12
1
Int,VDD,Ext
$1.03
12
2
Int,VDD,Ext
$1.78
8
1
Int,VDD,Ext
$0.49
8
2
Int,VDD,Ext
$0.84
10
1
Int,VDD,Ext
$0.64
10
2
Int,VDD,Ext
$1.11
12
1

$0.94
12
2
Int,VDD,Ext
$1.63
8
1
Ext
$0.70
8
2
Ext
$0.93
10
1
Ext
$1.00
10
2
Ext
$1.33
12
1
Ext
$1.41
12
2
Ext
$1.90
8
1
Ext
$0.94
10
1
Ext
$1.21

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP47FVB02A0T-E/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A1-E/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A1T-E/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A2-E/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A2T-E/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A3-E/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A3T-E/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
MCP47FVB02A0-E/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
