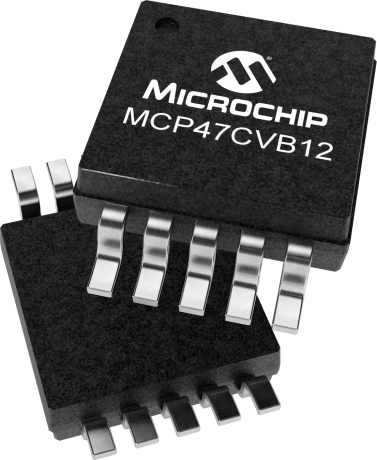

MCP47CVB12

Mixed Signal Products

Status: In Production

Features:

  • 10-Bit Resolution
  • I²C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSB Integral Nonlinearity (INL) Specification
  • Fast Settling Time: 16 µs (typ)
  • Power-on/Brown-out Reset (POR/BOR) Protection
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

MCP47CVB12 is a dual channel, 10-bit, buffered voltage output Digital-to-Analog Converter (DAC) with volatile memory and an I²C Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 6µs.  It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations and motor control applications.


For different resolutions and number of output channels, please check out our other parts in the MCP47CVBxx family.

Additional Features
  • 10-Bit Resolution
  • I²C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSB Integral Nonlinearity (INL) Specification
  • Fast Settling Time: 16 µs (typ)
  • Power-on/Brown-out Reset (POR/BOR) Protection
  • DAC Voltage Reference Options:
  • Device VDD
  • External VREF (buffered or unbuffered)
  • Internal Band gap (1.227V typical)
  • Packages Types :
  • 16-lead 3 x 3 QFN, 10-lead MSOP, 10-lead 3 x 3 DFN
  • Temperature: -40°C to +125°C
Parametrics
Name
Value
Typical Operating Current (µA)
500
Resolution (Bits)
10
DACs per Package
2
Output Settling Time (µs)
16
DNL (LSB)
0.25
Temp. Range (°C)
-40°C to +125°C
Interface
I²C™

Documents

Jump to:
×

Data Sheets

MCP47CXBXX Data Sheet
8862KB
