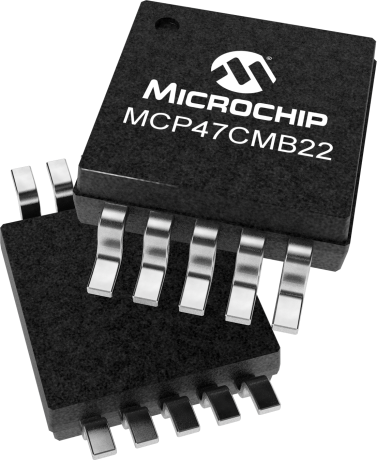

MCP47CMB22

12-Bit Dual Output DAC w/MTP and I2C™

Status: In Production

Features:

  • 12-Bit Resolution
  • I²C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSB Integral Nonlinearity (INL) Specification
  • Fast Settling Time: 16 µs (typ)
  • Nonvolatile Memory (MTP) size: 32 locations
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

MCP47CMB22 is a dual channel, 12-bit, buffered voltage output Digital-to-Analog Converter (DAC) with MTP memory and an I²C Compatible Serial Interface. This  device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 6µs. This device has integrated MTP memory that can be written up to 32 times, for reach specific register. It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations and motor control applications.


For different resolutions and number of output channels, please check out our other parts in the MCP47CMBxx family.

Additional Features
  • 12-Bit Resolution
  • I²C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSB Integral Nonlinearity (INL) Specification
  • Fast Settling Time: 16 µs (typ)
  • Nonvolatile Memory (MTP) size: 32 locations
  • Power-on/Brown-out Reset (POR/BOR) Protection
  • DAC Voltage Reference Options:
  • Device VDD
  • External VREF (buffered or unbuffered)
  • Internal Band gap (1.227V typical)
  • Packages Types :
  • 16-lead 3 x 3 QFN, 10-lead MSOP, 10-lead 3 x 3 DFN
  • Temperature: -40°C to +125°C
Parametrics
Name
Value
Typical Operating Current (µA)
500
Resolution (Bits)
12
DACs per Package
2
Vref
Int,VDD,Ext
Output Settling Time (µs)
16
DNL (LSB)
1
Temp. Range (°C)
-40 to 125
Interface
I²C™

Documents

Jump to:

Data Sheets


8862KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MSOP-10 and MSOP-8 Bondout Board
MSOP-10 and MSOP-8 Bondout Board ( ADM00309 )

The MSOP-10 and MSOP-8 Evaluation Board is a bond-out board that allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in any of the following packages:
• MSOP (8- and 10-pin )
• DIP (10 pin)

Note:
• The Evaluation Board can be used as a MSOP- to DIP- converter
