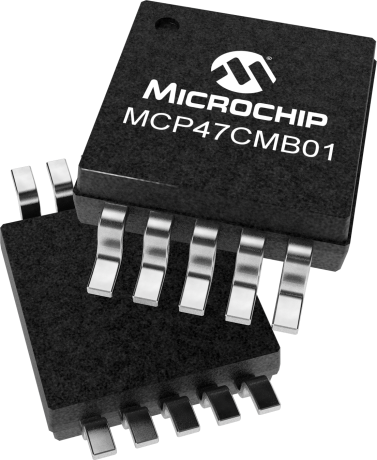

product primary image

MCP47CMB01

8-Bit Single Output DAC w/MTP and I2C™

Status: In Production

Features:

  • 8-Bit Resolutions
  • I2C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSb Integral Nonlinearity (INL) Specification
  • Fast Settling Time of 16 μs (typ)
  • Nonvolatile Memory (MTP) Size: 32 Locations
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

MCP47CMB01 is a single channel, 8-bit, buffered voltage output Digital-to-Analog Converter (DAC) with MTP memory and an I²C Compatible Serial Interface. This  device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 6µs. This device has integrated MTP memory that can be written up to 32 times, for reach specific register. It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations and motor control applications.


For different resolutions and number of output channels, please check out our other parts in the MCP47CMBxx family.

Additional Features
  • 8-Bit Resolutions
  • I2C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSb Integral Nonlinearity (INL) Specification
  • Fast Settling Time of 16 μs (typ)
  • Nonvolatile Memory (MTP) Size: 32 Locations
  • Power-on/Brown-out Reset (POR/BOR) Protection
  • DAC Voltage Reference Options:
  • Device VDD
  • External VREF pin (buffered or unbuffered)
  • Internal band gap (1.227V typical)
  • Package Types:
  • 16-lead 3x3 QFN, 10-lead MSOP, 10-lead 3x3 DFN
  • Temperature: -40°C to +125°C

Documents

Jump to:
×

Data Sheets

MCP47CXBXX Data Sheet

8862KB

Development tools data is currently unavailable.

Similar Devices

Product
Resolution
Vref
Price 5K
MCP4706
8
External,VDD
$0.55
MCP4716
10
External
$0.60
MCP4725
12
External
$0.70
MCP4726
12
External
$0.74
MCP4728
12
Internal,VDD
$1.37
MCP47A1
6
External
$0.44
MCP47CMB01
8
Internal,VDD,External
$0.67
MCP47CMB02
8
Internal,VDD,External
$1.04
MCP47CMB11
10
Internal,VDD,External
$0.88
MCP47CMB12
10
Internal,VDD,External
$1.45
MCP47CMB21
12
Internal,VDD,External
$1.24
MCP47CMB22
12
Internal,VDD,External
$2.02
MCP47CVB01
8
Internal,VDD,External
$0.56
MCP47CVB02
8
Internal,VDD,External
$0.92
MCP47CVB11
10
Internal,VDD,External
$0.77
MCP47CVB12
10
Internal,VDD,External
$1.26
MCP47CVB21
12
Internal,VDD,External
$1.12
MCP47CVB22
12
Internal,VDD,External
$1.85
MCP47DA1
6
External,VDD
$0.51
MCP47FEB01
8
Internal,VDD,External
$0.63
MCP47FEB02
8
Internal,VDD,External
$0.99
MCP47FEB04
8
Internal,VDD,External

MCP47FEB08
8
Internal,VDD,External
$2.61
MCP47FEB11
10
Internal,VDD,External
$0.78
MCP47FEB12
10
Internal,VDD,External
$1.34
MCP47FEB14
10
Internal,VDD,External

MCP47FEB18
10
Internal,VDD,External
$4.27
MCP47FEB21
12
Internal,VDD,External
$1.08
MCP47FEB22
12
Internal,VDD,External
$1.87
MCP47FEB24
12
Internal,VDD,External

MCP47FEB28
12
Internal,VDD,External
$6.98
MCP47FVB01
8
Internal,VDD,External
$0.51
MCP47FVB02
8
Internal,VDD,External
$0.88
MCP47FVB04
8
Internal,VDD,External

MCP47FVB08
8
Internal,VDD,External
$2.59
MCP47FVB11
10
Internal,VDD,External
$0.67
MCP47FVB12
10
Internal,VDD,External
$1.17
MCP47FVB14
10
Internal,VDD,External

MCP47FVB18
10
Internal,VDD,External
$4.24
MCP47FVB21
12
Internal,VDD,External
$0.99
MCP47FVB22
12
Internal,VDD,External
$1.71
MCP47FVB24
12
Internal,VDD,External

MCP47FVB28
12
Internal,VDD,External
$6.96
MCP4801
8
Internal
$0.86
MCP4802
8
Internal
$1.07
MCP4811
10
Internal
$1.23
MCP4812
10
Internal
$1.53
MCP4821
12
Internal
$1.71
MCP4822
12
Internal
$2.17
MCP48CMB01
8
Internal,VDD,External
$0.67
MCP48CMB02
8
Internal,VDD,External
$1.04
MCP48CMB11
10
Internal,VDD,External
$0.88
MCP48CMB12
10
Internal,VDD,External
$1.45
MCP48CMB21
12
Internal,VDD,External
$1.24
MCP48CMB22
12
Internal,VDD,External
$2.02
MCP48CVB01
8
Internal,VDD,External
$0.56
MCP48CVB02
8
Internal,VDD,External
$0.92
MCP48CVB11
10
Internal,VDD,External
$0.77
MCP48CVB12
10
Internal,VDD,External
$1.26
MCP48CVB21
12
Internal,VDD,External
$1.12
MCP48CVB22
12
Internal,VDD,External
$1.85
MCP48FEB01
8
Internal,VDD,External
$0.63
MCP48FEB02
8
Internal,VDD,External
$0.99
MCP48FEB04
8
Internal,VDD,External

MCP48FEB08
8
Internal,VDD,External
$2.61
MCP48FEB11
10
Internal,VDD,External
$0.78
MCP48FEB12
10
Internal,VDD,External
$1.34
MCP48FEB14
10
Internal,VDD,External

MCP48FEB18
10
Internal,VDD,External
$4.27
MCP48FEB21
12
Internal,VDD,External
$1.08
MCP48FEB22
12
Internal,VDD,External
$1.87
MCP48FEB24
12
Internal,VDD,External

MCP48FEB28
12
Internal,VDD,External
$6.98
MCP48FVB01
8
Internal,VDD,External
$0.51
MCP48FVB02
8
Internal,VDD,External
$0.88
MCP48FVB04
8
Internal,VDD,External

MCP48FVB08
8
Internal,VDD,External
$2.59
MCP48FVB11
10
Internal,VDD,External
$0.67
MCP48FVB12
10
Internal,VDD,External
$1.17
MCP48FVB14
10
Internal,VDD,External

MCP48FVB18
10
Internal,VDD,External
$4.24
MCP48FVB21
12
Internal,VDD,External
$0.99
MCP48FVB22
12
Internal,VDD,External
$1.71
MCP48FVB24
12
Internal,VDD,External

MCP48FVB28
12
Internal,VDD,External
$6.96
MCP4901
8
External
$0.74
MCP4902
8
External
$0.98
MCP4911
10
External
$1.05
MCP4912
10
External
$1.33
MCP4921
12
External
$1.43
MCP4922
12
External
$1.90
TC1320
8
External
$0.99
TC1321
10
External
$1.28

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP47CMB01-E/UN
0.023200
0.060000
10
MSOP
3x3mm
Matte Tin
e3
MCP47CMB01T-E/UN
0.023200
0.200000
10
MSOP
3x3mm
Matte Tin
e3
MCP47CMB01-E/MG
0.021600
0.041667
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP47CMB01T-E/MG
0.021600
0.234849
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP47CMB01-E/MF
0.023900
0.041667
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP47CMB01T-E/MF
0.023900
0.234849
10
DFN
3x3x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
