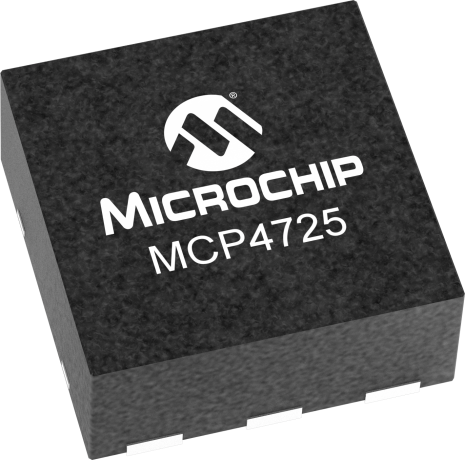

product primary image

MCP4725

12-Bit Single Output DAC w/EEPROM and I2C™

Status: In Production

Features:

  • 12-Bit Resolution
  • On-Board Non-Volatile Memory (EEPROM)
  • ±0.2 LSB DNL (typ)
  • External A0 Address Pin
  • Normal or Power-Down Mode
  • Fast Settling Time of 6µs (typ)
  • External Voltage Reference (VDD)
  • Rail-to-Rail Output
  • Low Power Consumption
  • Single-Supply Operation: 2.7V to 5.5V
  • Eight Available Addresses
  • Standard (100 kbps), Fast (400 kbps) and High Speed (3.4 Mbps) Modes
  • Small 6-lead SOT-23 Package
  • Extended Temperature Range: -40°C to +125°C
  • AEC-Q100 Grade 1 qualified
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

MCP4725 is a single channel, 12-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.

The MCP4725 DAC offers integrated non-volatile memory (EEPROM) which allows DAC register and  configuration bit values to be saves at powered off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 packages.

Additional Features
    • 12-Bit Resolution
    • On-Board Non-Volatile Memory (EEPROM)
    • ±0.2 LSB DNL (typ)
    • External A0 Address Pin
    • Normal or Power-Down Mode
    • Fast Settling Time of 6µs (typ)
    • External Voltage Reference (VDD)
    • Rail-to-Rail Output
    • Low Power Consumption
    • Single-Supply Operation: 2.7V to 5.5V
    • I2CTM Interface:
      • Eight Available Addresses
      • Standard (100 kbps), Fast (400 kbps) and High Speed (3.4 Mbps) Modes
    • Small 6-lead SOT-23 Package
    • Extended Temperature Range: -40°C to +125°C
    • AEC-Q100 Grade 1 qualified

Documentation data is currently unavailable.


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP4725A0T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4725A1T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4725A2T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4725A3T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4725A0T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4725A0T-E/CHVAO
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4725A1T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4725A2T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4725A3T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
