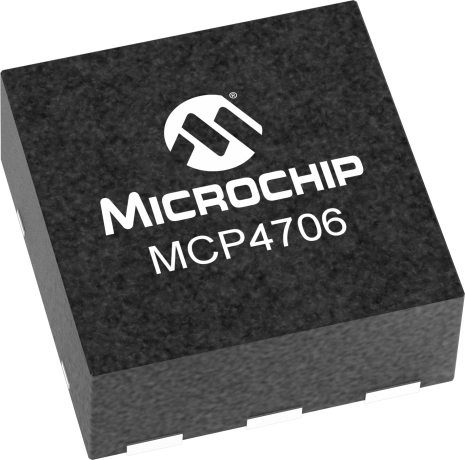

product primary image

MCP4706

8-Bit Single Output DAC w/EEPROM and I2C™

Status: In Production

Features:

  • 8-bit: MCP4706
  • Rail-to-Rail Output
  • Fast Settling Time of 6 µs (typical)
  • VDD
  • VREF
  • Unity (1x)
  • 2x, only when VREF is used as voltage source
  • Auto Recall of Saved DAC register setting
  • Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)
  • Disconnects output buffer
  • Selection of VOUT pull-down resistors
  • Normal Operation: 210 µA typ.
  • Power Down Operation: 60 nA typ. (PD1:PD0 = “11”)
  • Single-Supply Operation: 2.7V to 5.5V
  • Eight Available Addresses
  • Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes
  • Small 6-lead SOT-23 and DFN (2x2) Packages
  • Extended Temperature Range: -40°C to +125°C
  • AEC-Q100 Grade 1 qualified
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

MCP4706 is a single channel, 8-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.

The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and  configuration bit values to be saves at powered off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.

Additional Features
    • Output Voltage Resolutions
      • 8-bit: MCP4706
    • Rail-to-Rail Output
    • Fast Settling Time of 6 µs (typical)
    • DAC Voltage Reference Options
      • VDD
      • VREF
    • Output Gain Options
      • Unity (1x)
      • 2x, only when VREF is used as voltage source
    • Non-Volatile Memory (EEPROM)
      • Auto Recall of Saved DAC register setting
      • Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)
    • Power-Down Modes
      • Disconnects output buffer
      • Selection of VOUT pull-down resistors
      (640 kohm, 125 kohm, or 1 kohm)
    • Low Power Consumption
      • Normal Operation: 210 µA typ.
      • Power Down Operation: 60 nA typ. (PD1:PD0 = “11”)
    • Single-Supply Operation: 2.7V to 5.5V
    • I2C™ Interface:
      • Eight Available Addresses
      • Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes
    • Small 6-lead SOT-23 and DFN (2x2) Packages
    • Extended Temperature Range: -40°C to +125°C
    • AEC-Q100 Grade 1 qualified

Documents

Jump to:
×

Data Sheets

MCP4706/4716/4726 Data Sheet

16393KB
MCP47X6 PICtail Plus Daughter Board User's Guide

1156KB

Application Notes

AN1326 - Using DAC for LDMOS Amplifier Bias Control Applications

259KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP4706/16/26 PicTail Plus Daughter Board
MCP4706/16/26 PicTail Plus Daughter Board ( ADM00317 )

The MCP47X6 PICtail™ Plus Daughter Board allows customers to evaluate the capabilities of the MCP4726, MCP4716, and MCP4706 devices. This board can be controlled by the MCU of the Explorer 16 Development Board (P/N: DV164033) or by a PICkit™ Serial Analyzer. The board also provides easy access via test points to desired signals to monitor device operation. A buzzer is supplied that is...

Learn More
Add To Cart

Similar Devices

Product
Resolution
Vref
Price 5K
MCP4706
8
External,VDD
$0.55
MCP4716
10
External
$0.60
MCP4725
12
External
$0.70
MCP4726
12
External
$0.74
MCP4728
12
Internal,VDD
$1.37
MCP47A1
6
External
$0.44
MCP47CMB01
8
Internal,VDD,External
$0.67
MCP47CMB02
8
Internal,VDD,External
$1.04
MCP47CMB11
10
Internal,VDD,External
$0.88
MCP47CMB12
10
Internal,VDD,External
$1.45
MCP47CMB21
12
Internal,VDD,External
$1.24
MCP47CMB22
12
Internal,VDD,External
$2.02
MCP47CVB01
8
Internal,VDD,External
$0.56
MCP47CVB02
8
Internal,VDD,External
$0.92
MCP47CVB11
10
Internal,VDD,External
$0.77
MCP47CVB12
10
Internal,VDD,External
$1.26
MCP47CVB21
12
Internal,VDD,External
$1.12
MCP47CVB22
12
Internal,VDD,External
$1.85
MCP47DA1
6
External,VDD
$0.51
MCP47FEB01
8
Internal,VDD,External
$0.63
MCP47FEB02
8
Internal,VDD,External
$0.99
MCP47FEB04
8
Internal,VDD,External

MCP47FEB08
8
Internal,VDD,External
$2.61
MCP47FEB11
10
Internal,VDD,External
$0.78
MCP47FEB12
10
Internal,VDD,External
$1.34
MCP47FEB14
10
Internal,VDD,External

MCP47FEB18
10
Internal,VDD,External
$4.27
MCP47FEB21
12
Internal,VDD,External
$1.08
MCP47FEB22
12
Internal,VDD,External
$1.87
MCP47FEB24
12
Internal,VDD,External

MCP47FEB28
12
Internal,VDD,External
$6.98
MCP47FVB01
8
Internal,VDD,External
$0.51
MCP47FVB02
8
Internal,VDD,External
$0.88
MCP47FVB04
8
Internal,VDD,External

MCP47FVB08
8
Internal,VDD,External
$2.59
MCP47FVB11
10
Internal,VDD,External
$0.67
MCP47FVB12
10
Internal,VDD,External
$1.17
MCP47FVB14
10
Internal,VDD,External

MCP47FVB18
10
Internal,VDD,External
$4.24
MCP47FVB21
12
Internal,VDD,External
$0.99
MCP47FVB22
12
Internal,VDD,External
$1.71
MCP47FVB24
12
Internal,VDD,External

MCP47FVB28
12
Internal,VDD,External
$6.96
MCP4801
8
Internal
$0.86
MCP4802
8
Internal
$1.07
MCP4811
10
Internal
$1.23
MCP4812
10
Internal
$1.53
MCP4821
12
Internal
$1.71
MCP4822
12
Internal
$2.17
MCP48CMB01
8
Internal,VDD,External
$0.67
MCP48CMB02
8
Internal,VDD,External
$1.04
MCP48CMB11
10
Internal,VDD,External
$0.88
MCP48CMB12
10
Internal,VDD,External
$1.45
MCP48CMB21
12
Internal,VDD,External
$1.24
MCP48CMB22
12
Internal,VDD,External
$2.02
MCP48CVB01
8
Internal,VDD,External
$0.56
MCP48CVB02
8
Internal,VDD,External
$0.92
MCP48CVB11
10
Internal,VDD,External
$0.77
MCP48CVB12
10
Internal,VDD,External
$1.26
MCP48CVB21
12
Internal,VDD,External
$1.12
MCP48CVB22
12
Internal,VDD,External
$1.85
MCP48FEB01
8
Internal,VDD,External
$0.63
MCP48FEB02
8
Internal,VDD,External
$0.99
MCP48FEB04
8
Internal,VDD,External

MCP48FEB08
8
Internal,VDD,External
$2.61
MCP48FEB11
10
Internal,VDD,External
$0.78
MCP48FEB12
10
Internal,VDD,External
$1.34
MCP48FEB14
10
Internal,VDD,External

MCP48FEB18
10
Internal,VDD,External
$4.27
MCP48FEB21
12
Internal,VDD,External
$1.08
MCP48FEB22
12
Internal,VDD,External
$1.87
MCP48FEB24
12
Internal,VDD,External

MCP48FEB28
12
Internal,VDD,External
$6.98
MCP48FVB01
8
Internal,VDD,External
$0.51
MCP48FVB02
8
Internal,VDD,External
$0.88
MCP48FVB04
8
Internal,VDD,External

MCP48FVB08
8
Internal,VDD,External
$2.59
MCP48FVB11
10
Internal,VDD,External
$0.67
MCP48FVB12
10
Internal,VDD,External
$1.17
MCP48FVB14
10
Internal,VDD,External

MCP48FVB18
10
Internal,VDD,External
$4.24
MCP48FVB21
12
Internal,VDD,External
$0.99
MCP48FVB22
12
Internal,VDD,External
$1.71
MCP48FVB24
12
Internal,VDD,External

MCP48FVB28
12
Internal,VDD,External
$6.96
MCP4901
8
External
$0.74
MCP4902
8
External
$0.98
MCP4911
10
External
$1.05
MCP4912
10
External
$1.33
MCP4921
12
External
$1.43
MCP4922
12
External
$1.90
TC1320
8
External
$0.99
TC1321
10
External
$1.28

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP4706A0T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4706A1T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4706A2T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4706A3T-E/MAY
0.014800
0.258333
6
DFN
2x2x0.9mm
NiPdAu
e4
MCP4706A0T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4706A1T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4706A2T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
MCP4706A3T-E/CH
0.017000
0.046667
6
SOT-23

Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
