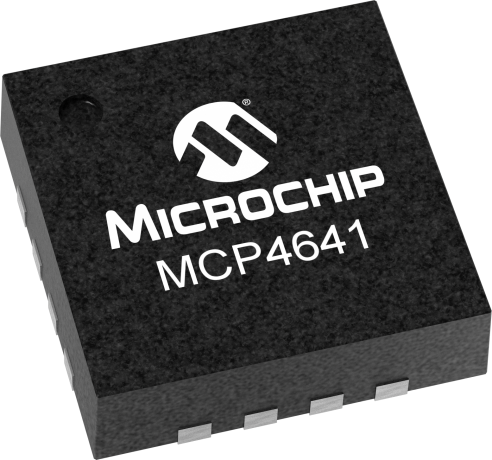

The MCP464X devices are dual channel, non-volatile, 7-bit (129 wiper steps) digital potentiometers with EEPROM and an I2C compatible interface. The MCP464X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP464X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.

• Dual Resistor Network
• Potentiometer or Rheostat configuration options
• Resistor Network Resolution
  • 7-bit: 128 Resistors (129 Steps)
• RAB Resistances options of:
  • 5kΩ
  • 10kΩ
  • 50kΩ
  • 100kΩ
• Zero-Scale to Full-Scale Wiper operation
• Low Wiper Resistance: 75Ω (typ.)
• Low Tempco:
  • Absolute (Rheostat): 50 ppm typical(0°C to 70°C)
  • Ratiometric (Potentiometer): 15 ppm typical
• I²C™Compatible Serial interface
  • 100 kHz
  • 400 kHz
  • 3.4 MHz
• Brown-out reset protection (1.5V typical)
• Serial Interface Inactive current (2.5 uA typ.)
• High-Voltage Tolerant Digital Inputs: Up to 12.5V
• Wide Operating Voltage:
  • 2.7V to 5.5V - Device Characteristics Specified
  • 1.8V to 5.5V - Device Operation
• Wide Bandwidth (-3dB) Operation:
  • 2 MHz (typ.) for 5.0 kΩ device
• Extended temperature range (-40°C to +125°C)
• AEC-Q100 Grade 1 quarlified
