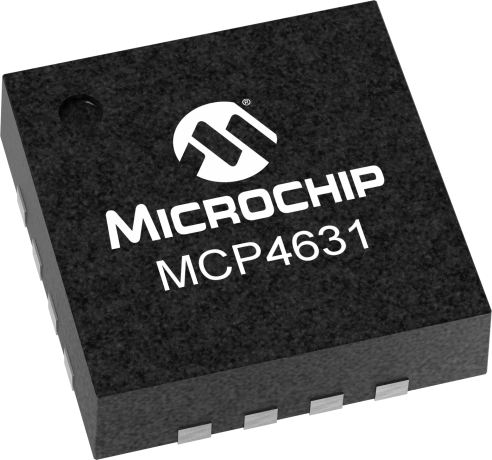

MCP4631

Status: In Production

Features:

  • Dual Resistor Network
  • Potentiometer or Rheostat configuration options
  • 7-bit: 128 Resistors (129 Steps)
  • 5kΩ
  • 10kΩ
  • 50kΩ
  • 100kΩ
  • Zero-Scale to Full-Scale Wiper operation
  • Low Wiper Resistance: 75Ω (typ.)
  • Absolute (Rheostat): 50 ppm typical(0°C to 70°C)
  • Ratiometric (Potentiometer): 15 ppm typical
  • 100 kHz
  • 400 kHz
  • 3.4 MHz
  • Brown-out reset protection (1.5V typical)
  • Serial Interface Inactive current (2.5 uA typ.)
  • High-Voltage Tolerant Digital Inputs: Up to 12.5V
  • 2.7V to 5.5V - Device Characteristics Specified
  • 1.8V to 5.5V - Device Operation
  • 2 MHz (typ.) for 5.0 kΩ device
  • Extended temperature range (-40°C to +125°C)
  • AEC-Q100 Grade 1 quarlified
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP463X devices are dual channel, volatile, 7-bit (257 wiper steps) digital potentiometers with an I2C compatible interface. The MCP463X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.

Additional Features
    • Dual Resistor Network
    • Potentiometer or Rheostat configuration options
    • Resistor Network Resolution
      • 7-bit: 128 Resistors (129 Steps)
    • RAB Resistances options of:
      • 5kΩ
      • 10kΩ
      • 50kΩ
      • 100kΩ
    • Zero-Scale to Full-Scale Wiper operation
    • Low Wiper Resistance: 75Ω (typ.)
    • Low Tempco:
      • Absolute (Rheostat): 50 ppm typical(0°C to 70°C)
      • Ratiometric (Potentiometer): 15 ppm typical
    • I2C™Compatible Serial interface
      • 100 kHz
      • 400 kHz
      • 3.4 MHz
    • Brown-out reset protection (1.5V typical)
    • Serial Interface Inactive current (2.5 uA typ.)
    • High-Voltage Tolerant Digital Inputs: Up to 12.5V
    • Wide Operating Voltage:
      • 2.7V to 5.5V - Device Characteristics Specified
      • 1.8V to 5.5V - Device Operation
    • Wide Bandwidth (-3dB) Operation:
      • 2 MHz (typ.) for 5.0 kΩ device
    • Extended temperature range (-40°C to +125°C)
    • AEC-Q100 Grade 1 quarlified
Parametrics
Name
Value
Temp. Range (°C)
-40 to +125
Volatile / Non Volatile
Volatile
Number of Taps
129
Resistance (ohms) K
5, 10, 50, 100
# per Package
2
INL (Max)
0.5
DNL (Max)
0.25
Interface
I²C™

Documents

Jump to:

Design Guides

Product Line Card

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP46XX Evaluation Board
MCP46XX Evaluation Board ( MCP46XXEV )

The MCP46XX Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s MCP4661 Digital Potentiometer device. The board uses the TSSOP20EV Generic PCB and has been populated for the MCP4661. The 6-pin header (PICkit Serial) has been jumpered to the MCP4661’s appropriate pins. This allows the PICkit Serial to communicate with the device....

Learn More
Add To Cart
MCP4XXX Digipot Daughter Board
MCP4XXX Digipot Daughter Board ( MCP4XXXDM-DB )

The MCP4xxx Digital Potentiometer Daughter Board allows the system designer to quickly evaluate the operation of Microchip Technology’s MCP42XXX and MCP402X Digital Potentiometers. The MCP42XXX are dual Digital Potentiometer devices that have the same characteristics as their single Digital Potentiometer devices (MCP41XXX). The MCP402x devices are non-volatile devices that have similar...

Learn More
Add To Cart
SOIC14 Eval Board
SOIC14 Eval Board ( SOIC14EV )

The 14-Lead SOIC/TSSOP/DIP Evaluation Board allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in either SOIC, DIP, or TSSOP packages.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP4631T-103E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP4631T-104E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP4631T-502E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP4631T-503E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP4631-103E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631-104E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631-502E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631-503E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631T-103E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631T-104E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631T-502E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP4631T-503E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
