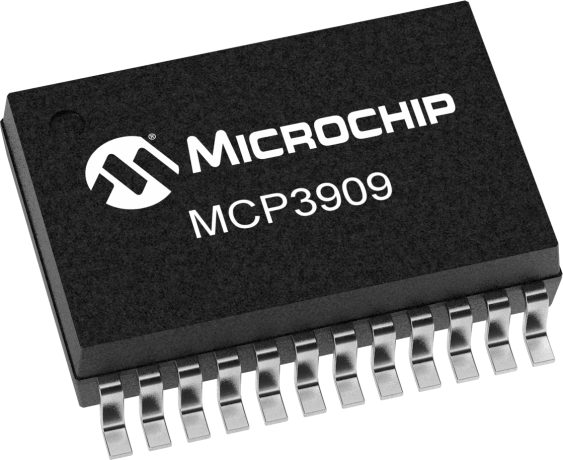

product primary image

MCP3909

Status: In Production

Features:

  • Supplies active (real) power measurement for single-phase, residential energy metering
  • Supports IEC 62053 International Energy Metering Specification and legacy IEC 1036/61036/687 Specifications
  • Two multi-bit, DAC, second-order, 16-bit, Delta-Sigma Analog-to-Digital Converters (ADCs)
  • Ultra-low drift on-chip reference: 15 ppm/°C (typ.)
  • Low IDD of 4 mA (typ.)
  • Active power pulse output
  • SPI™ interface for access to raw ADC and multiplier data
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP3909 is an energy measurement IC supporting the IEC 62053 international energy metering specification. The output of the device includes a frequency proportional to the average active (real) power at the inputs as well as a simultaneous serial SPI interface to access the ADC channels and multiplier output data. The MCP3909 incorporates two 16-bit delta-sigma ADCs with a programmable gain up to 16. The output waveform data is available at up to 14 kHz with 16-bit ADC output and 20-bit multiplier output data. The integrated on-chip voltage reference has an ultra-low temperature drift of 15 ppm/°C.

For product comparison, please consider: MCP3910, MCP3913

Additional Features
    • Supplies active (real) power measurement for single-phase, residential energy metering
    • Supports IEC 62053 International Energy Metering Specification and legacy IEC 1036/61036/687 Specifications
    • Two multi-bit, DAC, second-order, 16-bit, Delta-Sigma Analog-to-Digital Converters (ADCs)
    • Ultra-low drift on-chip reference: 15 ppm/°C (typ.)
    • Low IDD of 4 mA (typ.)
    • Active power pulse output
    • SPI™ interface for access to raw ADC and multiplier data
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Measurement Error
0.1%
Dynamic Range
1000:1
Gain Selection
1:16
Voltage Reference Drift Typical (ppm/°C)
15
PSRR % typ
0.01%
ADC Resolution (bits)
16
# of Channels
2
Power Type
Single-Phase
Device Type
Energy Meter IC
Interface
SPI/Pulse Output
Operating Voltage (V)
2.7 - 3.6
Temperature Range (°C)
-40 to 125

Documents

Jump to:

Brochures


Development tools data is currently unavailable.

Similar Devices

Product
No. of Channels
ADC Resolution (bits)
ADC SINAD (dB)
Price 5K
3
16
78
$0.67
6
16
78
$1.44
7
16
78
$2.28
3
24
84
$1.97
4
24
84
$2.49
7
24
84
$2.94
2
24
91
$1.44
6
24
91
$3.09
2
16
n/a
$1.34
2
16
n/a
$1.36
2
16
n/a
$1.47
2
16
82
$1.48
2
24
93.5
$1.46
2
24
94.5
$1.40
4
24
93.5
$2.34
6
24
94.5
$3.04
8
24
94.5
$3.76
1
24
93.5
$1.12
3
24
93.5
$1.84
2
24
94.5
$1.82
2
24
94.5
$1.82
2
24
94.5
$1.82
3
24
94.5
$1.82
2
24
94.5
$1.82

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP3909-E/SS
0.186500
0.389831
24
SSOP
.209in
Matte Tin
e3
MCP3909-I/SS
0.186500
0.389831
24
SSOP
.209in
Matte Tin
e3
MCP3909T-E/SS
0.186500
0.436191
24
SSOP
.209in
Matte Tin
e3
MCP3909T-I/SS
0.186500
0.436191
24
SSOP
.209in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
