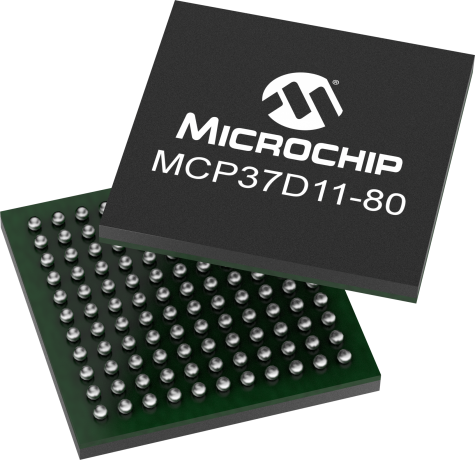

The MCP37D11-80 is a 12-bit pipelined A/D converter with a maximum sampling rate of 80 Msps. The high accuracy of 70.9 dB Signal-to-Noise Ratio (SNR) and over 92.2 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 311 mW at 80 Msps including LVDS digital I/O. Lower power saving modes are available at 79 mW for Standby and 22 mW for Shutdown. The MCP37D11-80 includes many digital processing features that simplify system design, cost and power usage. These include an integrated digital down-converter with onboard NCO, decimation filters for improved SNR, a noise-shaping requantizer for SNR improvement around a bandwidth of interest, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 is qualified for automotive applications (AEC-Q100).
The MCP37X1X-200 12-bit Evaluation Board (ADM00707) provides the opportunity to evaluate the performance of the MCP37X1X-200 Device Family. With the MCP37D11-200, 12-bit 200 Msps pipelined A/D converter on-board, the user can evaluate the functionality of the 12-bit 200 Msps A/D converters and the digital signal processing features. With the help of a compatible data capture card, the evaluation...
The MCP37XXX High-Speed Pipeline ADC Data Capture Card (ADM00506) is an FPGA-based memory buffer for the digital data received from the Analog to Digital Converter (ADC) on board the MCP37XXX Evaluation Boards. The data capture card connects to a PC via a USB cable, providing the user with two functionalities:
• The ability to send user commands directly to the ADC device using the
For pricing and availability, contact Microchip Local Sales.
