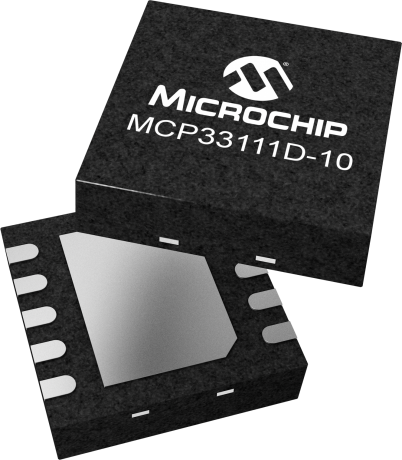

product primary image

MCP33111D-10

12-Bit, 1MSPS, Single Channel ADC

Status: Not Recommended for new designs

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The MCP33111D-10 12-bit Analog-to-Digital Converter (ADC) features a full differential input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33111D-10 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 12-bit ADC capability to be added to any PIC® microcontroller. The MCP33111D-10 features 1M samples/second, 1 input channel, low power consumption (0.8µA typical standby, 1.6mA typical active), and is available in 10 pin MSOP and 10 pin TDFN. Applications for the MCP33111D-10 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power supply applications.

Please consider this device MCP33141D-10

Additional Features
  • 12-bit resolution
  • Differential input
  • SPI interface
  • ±0.06 LSB Typical DNL
  • ±0.12 LSB Typical INL
  • 1 Msps sample rate
  • -40 to +125°C temperature range
  • Recommended for Automotive Designs (Q100)
Parametrics
Name
Value
Max Sample Rate (ksamples/sec)
1000
Typ. INL ± (LSB)
0.12
Max. Supply Current (µA)
2400
Input Type
Differential
# of Input Channels
1
Resolution (bits)
12
Interface
SPI
Input Voltage Range (V)
-5.1 to 5.1

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MCP331x1D-xx Evaluation Board
MCP331x1D-xx Evaluation Board ( ADM00873 )

The MCP331x1x-xx 1 Msps 16-bit SAR ADC Evaluation Board (ADM00873) is a part of the 1 Msps SAR ADC Evaluation Kit (ADM00873-BNDL). This Evaluation Board (ADM00873) provides the opportunity to evaluate the performance of the MCP331x1x-xx SAR ADC device family. With the MCP33131D-10 16-bit 1 Msps SAR A/D converter on-board, the user can evaluate various performances of the high precision A/D

...

Learn More
Add To Cart

Similar Devices

Product
Resolution (bits)
Max Sample Rate
Input type
Price 5K
10
200
Single-ended
$1.20
10
200
Single-ended
$1.29
10
200
Single-ended
$1.51
10
200
Single-ended
$1.58
10
22
Single-ended
$0.78
12
100
Single-ended
$1.65
12
100
Single-ended
$1.83
12
100
Single-ended
$2.29
12
100
Single-ended
$2.52
12
22
Single-ended
$1.04
13
100
Differential
$1.75
13
100
Differential
$2.27
13
100
Differential
$2.67
12
500
Single-ended
$1.53
12
1000
Single-ended
$1.77
12
500
Differential
$1.53
12
1000
Differential
$1.77
14
500
Single-ended
$2.52
14
1000
Single-ended
$3.35
14
500
Differential
$2.52
14
1000
Differential
$3.35
16
500
Single-ended
$3.66
16
1000
Single-ended
$4.89
16
500
Differential
$3.66
16
1000
Differential
$4.89
12
500
Single-ended
$1.46
12
1000
Single-ended
$1.70
12
500
Differential
$1.46
12
1000
Differential
$1.70
14
500
Single-ended
$2.45
14
1000
Single-ended
$3.30
14
500
Differential
$2.45
14
1000
Differential
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP33111D-10-E/MS
0.023200
0.060000
10
MSOP
3x3mm
Matte Tin
e3
MCP33111D-10-I/MS
0.023200
0.060000
10
MSOP
3x3mm
Matte Tin
e3
MCP33111D-10T-E/MS
0.023200
0.200000
10
MSOP
3x3mm
Matte Tin
e3
MCP33111D-10T-I/MS
0.023200
0.200000
10
MSOP
3x3mm
Matte Tin
e3
MCP33111D-10-E/MN
0.021000
0.041667
10
TDFN
3x3x0.8mm
Matte Tin
e3
MCP33111D-10T-E/MN
0.021000
0.228788
10
TDFN
3x3x0.8mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
