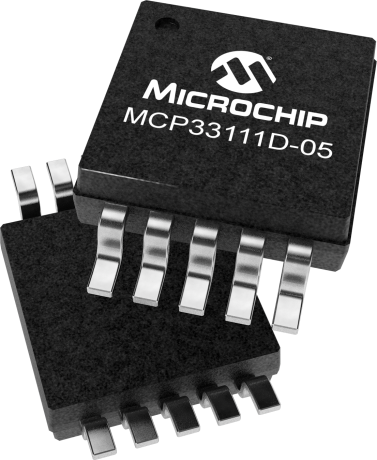

The MCP33111D-05 12-bit Analog-to-Digital Converter (ADC) features a full differential input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33111D-05 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 12-bit ADC capability to be added to any PIC® microcontroller. The MCP33111D-05 features 500k samples/second, 1 input channel, low power consumption (0.8µA typical standby, 1.4mA typical active), and is available in 10 pin MSOP and 10 pin TDFN. Applications for the MCP33111D-05 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power supply applications.
The MCP331x1x-xx 1 Msps Evaluation Board (ADM00873) is a part of the MCP331x1x-xx 1 Msps SAR ADC Evaluation Kit. This Evaluation Board (ADM00873) provides the opportunity to evaluate the performance of the MCP331x1x-xx SAR ADC device family. With the MCP33131D-10 16-bit 1 Msps SAR A/D converter on-board, the user can evaluate various performances of the high precision A/D converter.
For pricing and availability, contact Microchip Local Sales.
