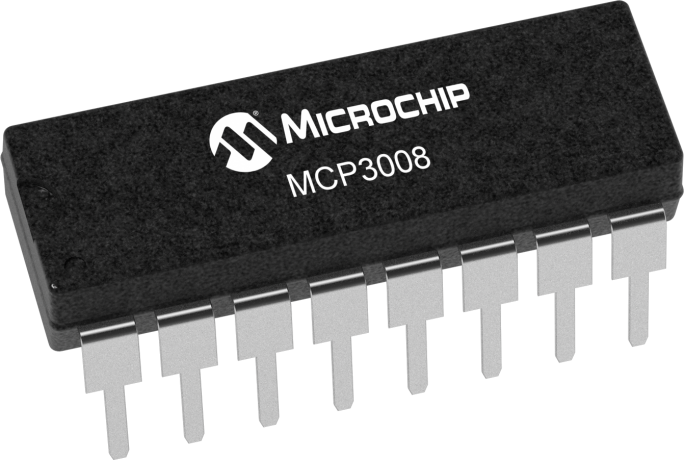

MCP3008

10-Bit, 200kSPS, 8-Channel ADC

Status: In Production

Features:

  • 10-bit resolution
  • Eight single-ended channels
  • SPI interface
  • ±1 LSB DNL
  • ±1 LSB INL
  • 200 ksps sample rate at 5V
  • -40 to +85°C temperature range
  • AEC-Q100 Grade 3
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The MCP3008 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3008 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 10-bit ADC capability to be added to any PIC® microcontroller. The MCP3008 features 200k samples/second, 8 input channels, low power consumption (5nA typical standby, 425µA typical active), and is available in 16-pin PDIP and SOIC packages. Applications for the MCP3008 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

Additional Features
    • 10-bit resolution
    • Eight single-ended channels
    • SPI interface
    • ±1 LSB DNL
    • ±1 LSB INL
    • 200 ksps sample rate at 5V
    • -40 to +85°C temperature range
    • AEC-Q100 Grade 3
Parametrics
Name
Value
Max Sample Rate (ksamples/sec)
200
Typ. INL ± (LSB)
0.5
Max. Supply Current (µA)
500
Input Type
Single-ended
# of Input Channels
8
Resolution (bits)
10
Interface
SPI
Temp Range (°C)
-40 to +85°C
Input Voltage Range (V)
0 to 5.5

Documents

Jump to:

Data Sheets


746KB

Development tools data is currently unavailable.

Similar Devices

Product
Resolution (bits)
Max Sample Rate
Input type
Price 5K
10
200
Single-ended
$1.20
10
200
Single-ended
$1.29
10
200
Single-ended
$1.51
10
200
Single-ended
$1.58
10
22
Single-ended
$0.78
12
100
Single-ended
$1.65
12
100
Single-ended
$1.83
12
100
Single-ended
$2.29
12
100
Single-ended
$2.52
12
22
Single-ended
$1.04
13
100
Differential
$1.75
13
100
Differential
$2.27
13
100
Differential
$2.67
12
500
Single-ended
$1.53
12
1000
Single-ended
$1.77
12
500
Differential
$1.53
12
1000
Differential
$1.77
14
500
Single-ended
$2.52
14
1000
Single-ended
$3.35
14
500
Differential
$2.52
14
1000
Differential
$3.35
16
500
Single-ended
$3.66
16
1000
Single-ended
$4.89
16
500
Differential
$3.66
16
1000
Differential
$4.89
12
500
Single-ended
$1.46
12
1000
Single-ended
$1.70
12
500
Differential
$1.46
12
1000
Differential
$1.70
14
500
Single-ended
$2.45
14
1000
Single-ended
$3.30
14
500
Differential
$2.45
14
1000
Differential
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP3008-I/SL
0.157400
0.300000
16
SOIC
.150in
Matte Tin
e3
MCP3008T-I/SL
0.157400
0.307692
16
SOIC
.150in
Matte Tin
e3
MCP3008T-I/SLVAO
0.157400
0.307692
16
SOIC
.150in
Matte Tin
e3
MCP3008-I/P
1.112700
1.833333
16
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
