The MCP2557/8FD is a Microchip Technology Inc. high-speed CAN transceiver/CAN Flexible Data Rate Transceiver with Silent Mode. The devices meet and exceed CAN FD specification requirements in addition to the latest Automotive OEM requirements. The device family members are MCP2557FD with No Connect pin 5 & MCP2558FD with VIO pin (internal level shifting)

• Supports both Classic CAN or CAN Flexible Data Rate applications
• Optimized for CAN FD (Flexible Data rate) at 2, 5 and 8 Mbps Operation
• Meets the latest ISO/DIS 11898-2:2015 specification
• Supports Silent Mode
  • Prevent disruption on the network due to local fault
  • Increased system reliability through redundancy
  • Test connection of the network
• AEC-Q100 Grade 0
• VIO Supply Pin to Interface Directly to CAN Controllers and Microcontrollers with 1.7V to 5.5V I/O
• CAN Bus Pins are Disconnected when Device is Unpowered
• An Unpowered Node or Brown-Out Event will Not Load the CAN Bus
• Detection of Ground Fault:
  • Permanent Dominant Detection on TXD
  • Permanent Dominant Detection on Bus
• Power-on Reset and Voltage Brown-Out Protection on VDD Pin
• Protection Against Damage Due to Short-Circuit Conditions (Positive or Negative Battery Voltage)
• Protection Against High-Voltage Transients in Automotive Environments
• Automatic Thermal Shutdown Protection
• Suitable for 12V and 24V Systems
• Extremely robust meeting automotive EMC hardware requirements

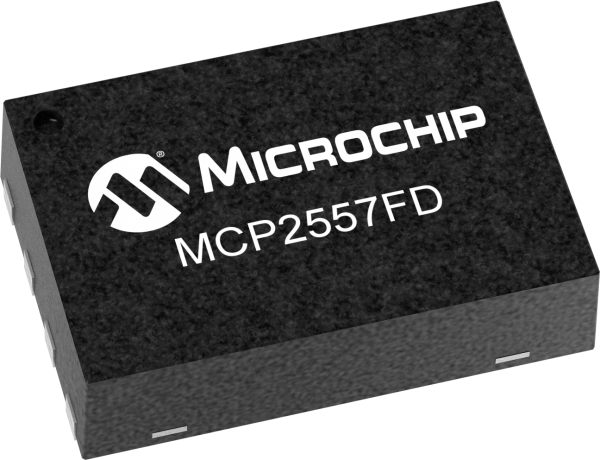

• Smallest 8L CAN transceiver package available-2x3 TDFN-8L

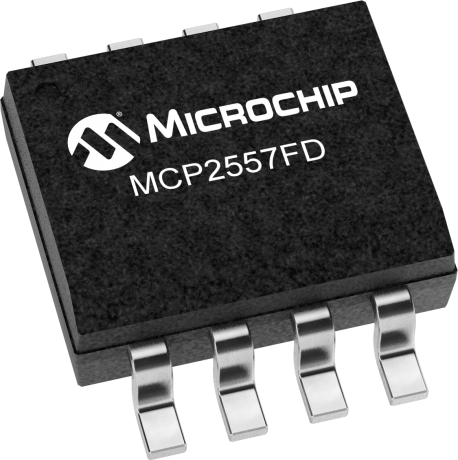

• Also available in SOIC-8L and 3x3 DFN-8L
• Temperature ranges:
  • High (H): -40°C to +150°C
