MCP25050

Not Recommended for New Designs

Status: Not Recommended for new designs

Features:

  • Mixed-signal CAN I/O Expander, configurable I/O, 4 10-bit ADCs, 2 PWM outputs
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Mixed-Signal Input/Output Expander. Contains up to 8 digital I/O, up to 4 10-bit A/D converters and up to 2 PWM outputs configurable by user.

Please consider this device MCP2515, MCP25625

Additional Features
Mixed-signal CAN I/O Expander, configurable I/O, 4 10-bit ADCs, 2 PWM outputs
Parametrics
Name
Value
Tx Buffers
3
Rx Buffers
2
Masks
1
Filters
2
Temp. Range (°C)
-40 to 125
Operating Voltage Range (V)
2.7 to 5.5

Documents

Jump to:

Data Sheet

03/24/2017
1187KB

Errata

Programming Specification

Design Guides

Product Line Card

User Guides

02/12/2004
918KB

Development Environment

  • Programmers
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

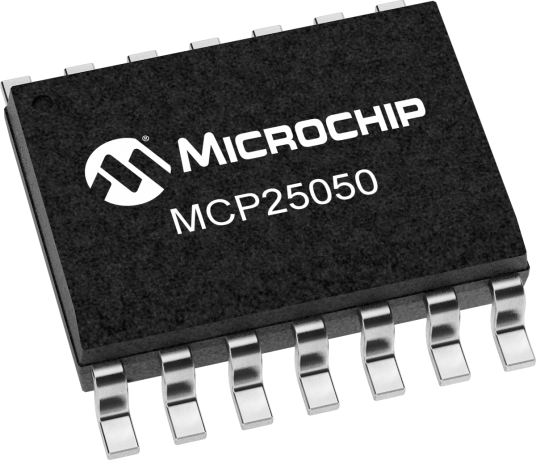

MCP25050-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25050-I/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25050T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP25050T-I/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3

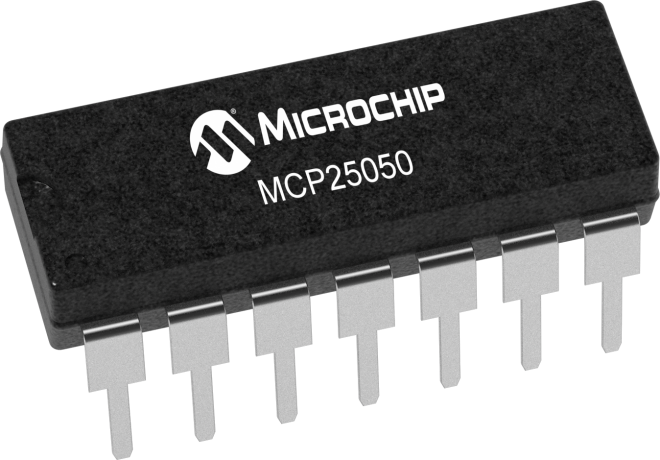

MCP25050-I/P
