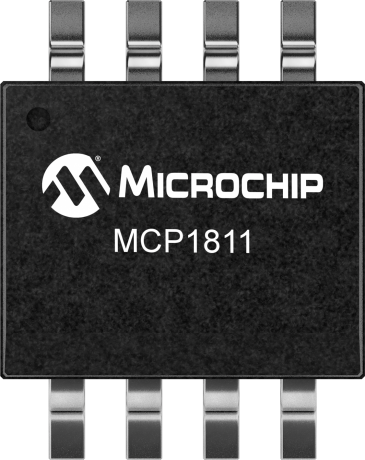

product primary image

MCP1811

150 mA Ultra-Low Iq LDO

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP1811/12 devices are 150 mA (MCP1811) and 300 mA (MCP1812) low dropout (LDO) linear regulators that provide high-current and low-output voltages while maintaining an ultra-low 250 nA of quiescent current during device operation. In addition, the MCP1811B/12B can be shut down for 5 nA (typical) supply current draw.

The MCP1811/12 family comes in nine standard fixed output-voltage versions: 1V, 1.2V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 4.0V. The 150/300 mA output current capability, combined with the low output-voltage capability, make the MCP1811/12 device family a good choice for new ultra-long-life LDO applications that have high-current demands, but require ultra-low power consumption during sleep periods.

The MCP1811/12 is stable with ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1 μF (2.2 μF for MCP1812) of output capacitance is needed to assure the stability of the system with a low noise output.

The MCP1811/12 can be paired with other ultra-low current devices, such as Microchip’s nanoWatt eXtreme Low Power (XLP) technology devices, for a complete ultra-low-power solution.

For product comparison, please consider: MCP1711, MCP1810

Additional Features
  • Ultra-Low Quiescent Current: 250 nA (typical)
  • Ultra-Low Shutdown Supply Current: 10 nA typ (MCP1811A) and 5 nA typ (MCP1811B)
  • Input Voltage Range: 1.8V to 5.5V
  • Standard Output Voltages: 1.0V, 1.2V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V and 4.0V
  • Low Dropout Voltage: 400 mV (typical) w/ Small Variation Over Load Range
  • Stable with Ceramic Output Capacitor: 1.0 uF
  • Overcurrent Protection w/ Foldback
  • Output Discharge (MCP1811A)
  • Available in 3 and 5 lead SOT-23, 3 and 5 lead SC70, 4 lead 1x1mm UDFN
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
150
IOUT (mA)
150
VIN Min (V)
1.8
VIN Max (V)
5.5
VOUT (V)
1.0V - 4.0V
Voltage Drop Typ (mV)
400
IGND Typ (µA)
0.25
PSRR 1 kHz (dB)
50

Documents

Jump to:

Data Sheet


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP1811AT-010/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-018/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-018/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-020/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-020/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-025/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-025/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-030/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-010/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-012/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-012/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-030/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-033/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-033/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-040/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-040/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-028/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811BT-028/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP1811AT-010/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-010/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-012/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-012/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-018/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-018/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-020/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-020/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-025/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-025/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-030/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-030/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-033/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-033/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-040/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-040/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-028/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811BT-028/LB
0.005800
0.040000
3
SC70
-
Matte Tin
e3
MCP1811AT-010/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-010/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-012/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-012/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-018/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-018/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-020/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-020/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-025/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-025/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-030/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-030/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-033/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-033/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-040/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-040/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-028/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811BT-028/LT
0.006300
0.033333
5
SC70
-
Matte Tin
e3
MCP1811AT-010/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-010/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-018/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-018/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-020/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-012/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-012/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-020/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-025/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-025/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-030/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-030/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-033/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-033/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-040/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-040/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-028/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811BT-028/TT
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
MCP1811AT-018/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-018/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-020/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-020/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-025/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-025/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-010/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-010/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-012/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-012/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-030/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-030/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-033/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-033/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-040/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-040/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811AT-028/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MCP1811BT-028/7QX
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
