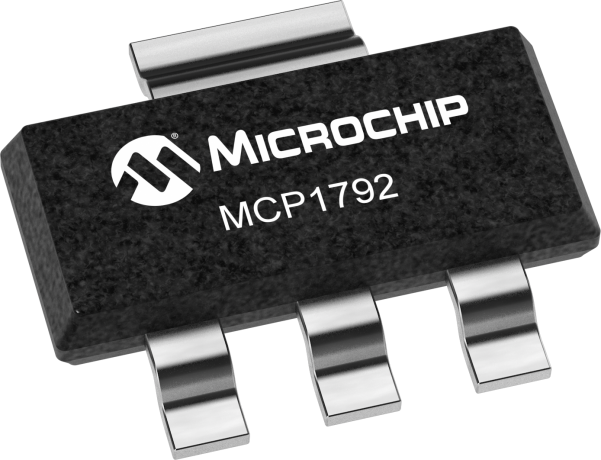

product primary image

MCP1792

100 mA High Vin Automotive LDO

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP1792/3 family devices are high voltage, low dropout (LDO) regulators, capable of generating 100 mA output current. The input voltage range of 4.5V to 55V makes it ideal in 12V to 48V power rails and in high voltage battery packs.

A low UVLO at shutdown of 2.4V makes it adequate for cold cranking conditions in automotive applications. The MCP1792/3 comes in 2 standard fixed output-voltage versions: 3.3V and 5.0V. The regulator output is
stable with 2.2 μF ceramic capacitors. The device is protected from short circuit events by the current foldback function and from overheating by means of thermal shutdown protection.

The MCP1792 is the 3-lead version of the MCP1792/3 device family and the MCP1793 is the 5-lead version, which offers shutdown functionality (SHDN pin). While in shutdown, the quiescent current drops to 2 μA, allowing for lower, overall, power consumption. The device itself has a ground current of 100 μA, while delivering a maximum output current of 100 mA.

For product comparison, please consider: MCP1790

Additional Features
  • AEC-Q100 Qualified and PPAP Capable with Grade 0
  • Wide Input Voltage: 4.5V to 55V
  • Up to 70V transient
  • Under Voltage Lock Out (UVLO): 2.4V
  • Extended Working Temperature Rang: -40C to 150C
  • Low Quiescent Supply Current: 25 uA typical
  • Low Shutdown Quiescent Supply Current: 2 uA typical
  • Output Current Capability: 100 mA typical
  • Stable with Ceramic Output Capacitor: 2.2 uF
  • High PSRR: 80 dB @ 100 Hz tyipcal
Parametrics
Name
Value
Product Type
Single LDOs
IOUT (mA)
100 mA
VIN Min (V)
4.5
VIN Max (V)
55
VOUT (V)
3.3 and 5.0
Voltage Drop Typ (mV)
250
IGND Typ (µA)
25
Tol Typ %
2
Noise (µV) rms
400
PSRR 1 kHz (dB)
70

Documents

Jump to:

Data Sheets

Software Library

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - MCP1792

The MCP1792/3 family devices are high voltage, low dropout (LDO) regulators, capable of generating 100 mA output current. The input voltage range of 4.5V to 55V makes it ideal in 12V to 48V power

...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP1792T-5002H/DBVAO
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1792T-3302H/DBVAO
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1792-3302H/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1792T-3302H/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1792-5002H/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1792T-5002H/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1792T-5002H/CBVAO
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1792T-3302H/CBVAO
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1792T-3302H/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1792T-5002H/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
