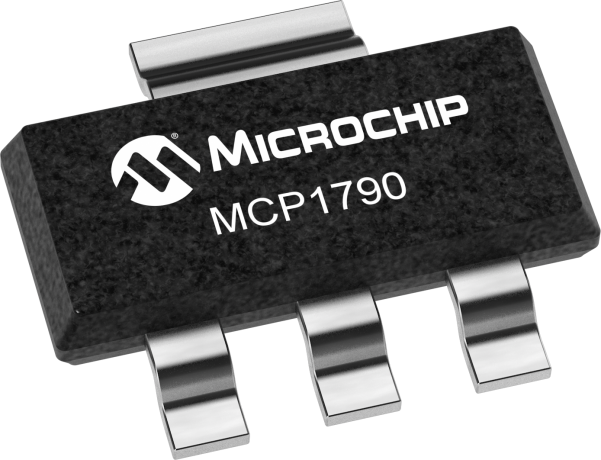

The MCP1790 is a 70 mA, ceramic output cap stable, high voltage, Low Dropout Regulator (LDO). The MCP1790 is capable of handling continuous input voltage of up to 30V and is load dump protect for up to 48V, making it especially suitable for automotive as well as 12V/24V industrial applications. The MCP1790 comes in thermally enhanced DDPAK-3 package as well as space-efficient SOT223-3 package. For shutdown and powergood options, see MCP1791
Wide steady state supply voltage: 6.0V - 30.0V
48V (43.5V ±10%) load dump protected for 180ms with a 30 second repetition rate
70 mA output current
Low quiescent current: 70 µA typical
Fixed output voltages: 3.0V, 3.3V, 5.0V
Extended Junction Temperature Range: -40 to +125°C
Output Voltage Tolerances of ±2.5% over the temperature range
MCP1630 Sepic Automotive LED Driver Reference Design ( MCP1630RD-SALED )
The MCP1630 SEPIC Automotive LED Driver Reference Design is a step-up/down, Switch mode, DC-DC converter used for powering LED applications. The demo board provides a 350 mA (700 mA, with hardware modification) constant current source. Other output currents can be obtained with minor modifications to the board components’ values. In addition, the board sustains the high-voltage peaks and...
TO-220-5/ TO263-5 Voltage Regulator Evaluation Board ( TO263-5EV-VREG )
The TO220-5 / TO263-5 Voltage Regulator Evaluation Board is designed to provide functional evaluation of Microchip Voltage Regulators that utilize the TO220-5 and TO263-5 package. The TO220-5 / TO263-5 Voltage Regulator Evaluation Board does not come with a voltage regulator soldered onto the board. This allows the user to attach the voltage regulator of their choosing to the board and perform...
