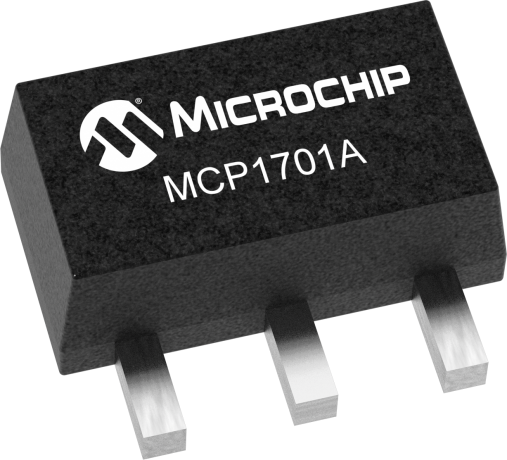

product primary image

MCP1701A

3.3V LDO Positive Voltage Regulator 2% Tol

Status: In Production

Features:

  • 2.0 uA Typical Quiescent Current
  • Input Operating Voltage up to 10.0V
  • Low Droput Voltage - 120 mV (typ) @ 100mA - 380 mV (typ) @ 200mA
  • High Output Current: 250 mA (VOUT = 5.0V)
  • High-Accuracy Output Voltage: 2% (max)
  • Low Temperature Drifting: 100 ppm/C
  • Excellent Line Regulation: 0.2%/V
  • Short Circuit Protection
  • Standard Output Voltage Options: 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
  • Package Options: SOT-23A-3, SOT-89-3, TO-92-3
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP1701A is a CMOS low dropout positive voltage regulator with a maximum input voltage of 10V that can source up to 250 mA with a low input to output voltage differential of 380 mV at 200 mA. This low dropout voltage combined with low current consumption of 1.0 µA typical makes this part ideal for battery operated systems. This part is recommended for applications where the input voltage is between 6.0V and 10.0V. For applications where input voltages are less than 6.0V, Microchip recommends the MCP1700. The MCP1701A is offered in SOT-23-3, SOT-89-3 and TO-92-3 packages.

For product comparison, please consider: MCP1703A

Additional Features
    • 2.0 uA Typical Quiescent Current
    • Input Operating Voltage up to 10.0V
    • Low Droput Voltage - 120 mV (typ) @ 100mA - 380 mV (typ) @ 200mA
    • High Output Current: 250 mA (VOUT = 5.0V)
    • High-Accuracy Output Voltage: 2% (max)
    • Low Temperature Drifting: 100 ppm/C
    • Excellent Line Regulation: 0.2%/V
    • Short Circuit Protection
    • Standard Output Voltage Options: 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
    • Package Options: SOT-23A-3, SOT-89-3, TO-92-3
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
IOUT #2
IOUT #3
IOUT #4
IOUT (mA)
250
VIN Max (V)
10
VOUT (V)
1.8 2.5 3.0 3.3 5.0
Voltage Drop Typ (mV)
380
IGND Typ (µA)
2
Tol Typ %
±2
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets

06/24/2015
593KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
SOT23-3 Voltage Regulator Evaluation Board
SOT23-3 Voltage Regulator Evaluation Board ( SOT23-3EV-VREG )

The SOT23-3 Voltage Regulator Evaluation Board is designed to evaluate and test voltage regulators. By soldering the desired device to the evaluation board, the user can easily validate several parameters of the device.

The SOT23-3 Voltage Regulator Evaluation Board does not come with a voltage regulator soldered onto the board. This allows the user to attach the voltage regulator...

Learn More
Add To Cart
Voltage Supervisor Evaluation Board
Voltage Supervisor Evaluation Board ( VSUPEV )

The Voltage Supervisor SOT23 Evaluation Board allows the system designer to quickly evaluate the operation of Microchip’s Voltage Supervisors and Voltage Detectors in the SOT-23-3 package. The board has been made generic so that other SOT-23-3 devices (such as LDOs and Voltage References) may also be evaluated using this board. This kit comes with four blank PCBs to allow the designer to...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP1701AT-1802I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-2502I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-3002I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-3302I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-3602I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-4002I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-4602I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-5002I/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1701AT-1802I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1701AT-2502I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1701AT-3002I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1701AT-3302I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1701AT-4002I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1701AT-5002I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1701AT-6002I/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
