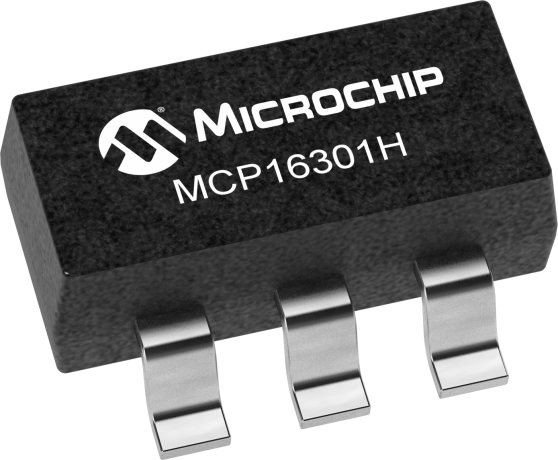

product primary image

MCP16301H

36V Non-Synchronous Buck Regulator

Status: In Production

Features:

  • Up to 96% Typical Efficiency
  • Input Voltage Range: 4.7V to 36
  • Output Voltage Range: 2.0V to 15V
  • 2% Output Voltage Accuracy
  • Integrated N-Channel Buck Switch
  • 600 mA Output Current
  • 500 kHz Fixed Frequency
  • Adjustable Output Voltage
  • Low Device Shutdown Current
  • Peak Current Mode Control
  • Internal Compensation
  • Stable with Ceramic Capacitors
  • Internal Soft-Start
  • Cycle by Cycle Peak Current Limit
  • Overtemperature Protection
  • SOT-23-6
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP16301H is a highly integrated, high-efficiency, fixed frequency, step-down DC-DC converter in a popular 6-pin SOT-23 package that operates from input voltage sources up to 36V. Integrated features include a high side switch, fixed frequency Peak Current Mode Control, internal compensation, peak current limit and overtemperature protection. Minimal external components are necessary to develop a complete step-down DC-DC converter power supply.

Additional Features
    • Up to 96% Typical Efficiency
    • Input Voltage Range: 4.7V to 36
    • Output Voltage Range: 2.0V to 15V
    • 2% Output Voltage Accuracy
    • Integrated N-Channel Buck Switch
    • 600 mA Output Current
    • 500 kHz Fixed Frequency
    • Adjustable Output Voltage
    • Low Device Shutdown Current
    • Peak Current Mode Control
    • Internal Compensation
    • Stable with Ceramic Capacitors
    • Internal Soft-Start
    • Cycle by Cycle Peak Current Limit
    • Overtemperature Protection
    • SOT-23-6
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
4.7
Input Voltage Range Max (V)
36
Output Voltage Range Min (V)
2
Output Voltage Range Max (V)
15
Output Current (mA) max
600
Quiescent Current (mA) typ
2
Switching Frequency (kHz)
500
Operating Temp Range
-40 to 125
Automotive Rated
Yes
Vfb (V)
0.8
Duty Cycle Max (%)
95
SHUTDOWN Current (µA) (Typ)
7

Documents

Jump to:

Data Sheets

Software Libraries/Firmware


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP16301H-450E/CH
0.017000
0.150000
6
SOT-23
-
Matte Tin
e3
MCP16301HT-450E/CH
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
MCP16301HT-E/CH
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
MCP16301HT-E/CHVAO
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
