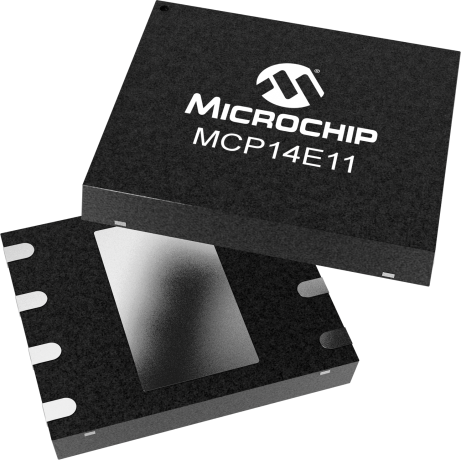

The MCP14E9/E10/E11 devices are a family of 3A,dual output buffers/MOSFET drivers with seperate enable functions for each output. As MOSFET drivers, the MCP14E9/E10/E11 can charge 1800 pF gate capacitance in under 25 nsec (max).The inputs are TTL/CMOS compatible and provide 300 mV of hysteresis between the high and low input levels that allows it to be driven from slow rising and falling signals and provide noise immunity.

• High peak output Current: 3A (typ)
• Independent Enable Function for each Driver
• Low Shoot-Through/Cross-Conduction Current in output Stage
• Wide input supply Operating Range: 4.5v to 18V
• High Capacitive Load drive Capability: 1800 pF in 20 nsec (typ)
• Short Delay Times: 75 nsec(typ)
• Matched rise/fall Times
• Low output Impedance: 2.2Ω (typ)
• Latch-up Protected: Will withstand 1.5A Reverse Current
• Input are TTL/CMOS compatiple and will withstand negative swings Up To 5V
• ESD Protected: 4kV
