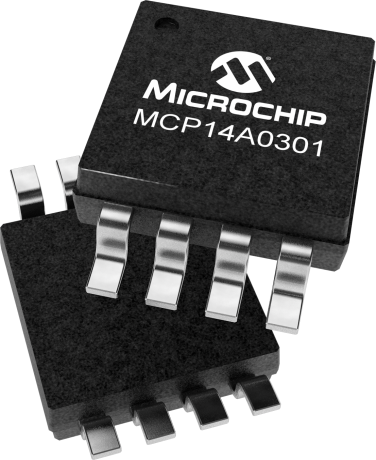

product primary image

MCP14A0301

3.0A MOSFET Driver With Low Threshold Input and Enable

Status: In Production

Features:

  •  High Peak Output Current: 3.0A (typical)
  • 4.5V to 18V
  • Low Shoot-Through/Cross-Conduction Current in Output Stage
  • 1800 pF in 13 ns (typical)
  • Short Delay Times: 15 ns (tD1), 18 ns (tD2) (typical)
  • Low Supply Current: 360 µA (typical)
  • Low-Voltage Threshold Input and Enable with Hysteresis
  • Latch-Up Protected: Withstands 500 mA Reverse Current
  • 8-Lead MSOP
  • 8-Lead SOIC
  • 8-Lead 2x2 WDFN
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MCP14A0301/2 devices are high-speed MOSFET drivers that are capable of providing up to 3.0A of peak current while operating from a single 4.5V to 18V supply. The inverting (MCP14A0301) or non-inverting (MCP14A0302) single channel output is directly controlled from either TTL or CMOS (2V to 18V) logic. These devices also feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.

The MCP14A0301/2 family of devices offer enhanced control with Enable functionality. The active-high Enable pin can be driven low to drive the output of the MCP14A0301/2 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pin floating for standard operation.

Additionally, the MCP14A0301/2 devices feature separate ground pins (AGND and GND), allowing greater  noise isolation between the level-sensitive Input/ Enable pins and the fast, high-current transitions of the push-pull output stage.

These devices are highly latch-up resistant under any condition within their power and voltage ratings. They can accept up to 500 mA of reverse current being forced back into their outputs without damage or logic upset. All terminals are fully protected against electrostatic discharge (ESD) up to 1.75 kV (HBM) and 200V (MM).

Additional Features
    •  High Peak Output Current: 3.0A (typical)
    • Wide Input Supply Voltage Operating Range:
      • 4.5V to 18V
    • Low Shoot-Through/Cross-Conduction Current in Output Stage
    • High Capacitive Load Drive Capability:
      • 1800 pF in 13 ns (typical)
    • Short Delay Times: 15 ns (tD1), 18 ns (tD2) (typical)
    • Low Supply Current: 360 µA (typical)
    • Low-Voltage Threshold Input and Enable with Hysteresis
    • Latch-Up Protected: Withstands 500 mA Reverse Current
    • Space-Saving Packages:
      • 8-Lead MSOP
      • 8-Lead SOIC
      • 8-Lead 2x2 WDFN
    Parametrics
    Name
    Value
    Driver Type
    Single
    Configuration
    Inverting
    Peak Output Current (source/sink, A)
    3.0/3.0
    Output Resistance (source/sink, Ω)
    2.2/1.5
    Maximum Supply Voltage (V)
    18
    Propagation Delay (Td1/Td2, ns)
    15/18
    Rise/Fall Time (Tr/Tf, ns)
    13/12
    Capacitive Load Drive
    1000 pF in 13.0 ns
    Features
    Low Input Threshold and Enable Pin

    Documents

    Jump to:

    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (grams)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MCP14A0301-E/MS
    0.025600
    0.070000
    8
    MSOP
    3x3mm
    Matte Tin
    e3
    MCP14A0301T-E/MS
    0.025600
    0.215600
    8
    MSOP
    3x3mm
    Matte Tin
    e3
    MCP14A0301T-E/KBA
    0.258333
    8
    WDFN
    2x2x0.8mm
    Matte Tin
    e3
    MCP14A0301-E/SN
    0.078000
    0.250000
    8
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    MCP14A0301T-E/SN
    0.078000
    0.230303
    8
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
