MOSFET drivers that are capable of providing up to 1.5A of peak current while operating from a single 4.5V to 18V supply. There are three output configurations available; dual inverting (MCP14A0153), dual noninverting (MCP14A0154) and complementary (MCP14A0155). These devices feature low shoot-through current, matched rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.

The MCP14A0153/4/5 family of devices offer enhanced control with Enable functionality. The active-high Enable pins can be driven low to drive the corresponding outputs of the MCP14A0153/4/5 low, regardless of the status of the Input pin. An integrated pull-up resistor allows the user to leave the Enable pins floating for standard operation.

•  High Peak Output Current: 1.5A (typical)
•  Wide Input Supply Voltage Operating Range:
  •  4.5V to 18V
• Low Shoot-Through/Cross-Conduction Current in Output Stage
•  High Capacitive Load Drive Capability:
  • 1000 pF in 11.5 ns (typical)
• Short Delay Times: 25 ns (tD1), 24 ns (tD2) (typical)
• Low Supply Current: 750 μA (typical)
• Low-Voltage Threshold Input and Enable with
• Hysteresis
• Latch-Up Protected: Withstands 500 mA Reverse
• Current
• Space-Saving Packages:

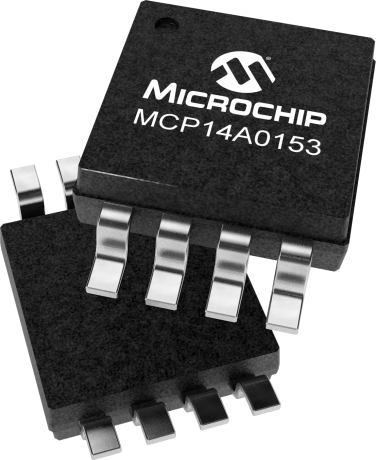

  • 8-Lead MSOP
  • 8-Lead SOIC

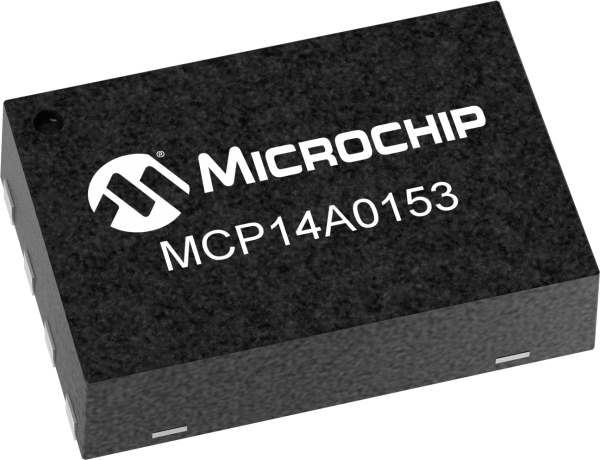

  • 8-Lead 2x3 TDFN
