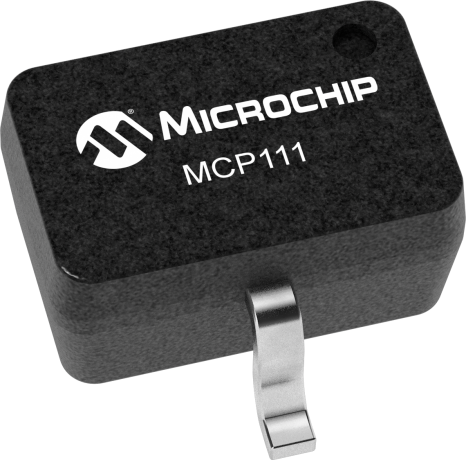

MCP111

1uA Supervisor Push-Pull Active Low

Status: In Production

Features:

  • Precise Detection Thresholds: 1.5% Low
  • Current Drain: Typ. 1uA Wide
  • Detection Range: 1.9V to 4.63V
  • Miniature package: SC70-3, SOT23-3, TO92-3
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP111/112 Series are CMOS voltage detectors are well suited for portable, consumer electrics applications due to the extremely low 1uA operating current and small surface-mount packaging. These devices are designed to hold the microcontroller in reset until the supply voltage reaches a predetermined operating level. These devices also protect against brownout conditions that occur as a result of the supply voltage dropping below a tolerable level.

Additional Features
    • Precise Detection Thresholds: 1.5% Low
    • Current Drain: Typ. 1uA Wide
    • Detection Range: 1.9V to 4.63V
    • Miniature package: SC70-3, SOT23-3, TO92-3





Parametrics
Name
Value
Product Type
Detector
Operating Temp. Range (°C)
-40 to 125
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
1.87(Itemp), 2.29, 2.59, 2.86, 2.87, 3.03, 4.31, 4.56
Reset Type
Active Low
Output
Open-Drain
Typical Supply Current (µA)
1

Documents

Jump to:

Data Sheet

08/10/2016
418KB

Product Line Card

Product Brief

03/28/2005
301KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
Voltage Supervisor Evaluation Board
Voltage Supervisor Evaluation Board ( VSUPEV )

The Voltage Supervisor SOT23 Evaluation Board allows the system designer to quickly evaluate the operation of Microchip’s Voltage Supervisors and Voltage Detectors in the SOT-23-3 package. The board has been made generic so that other SOT-23-3 devices (such as LDOs and Voltage References) may also be evaluated using this board. This kit comes with four blank PCBs to allow the designer to...

Learn More
Add To Cart
