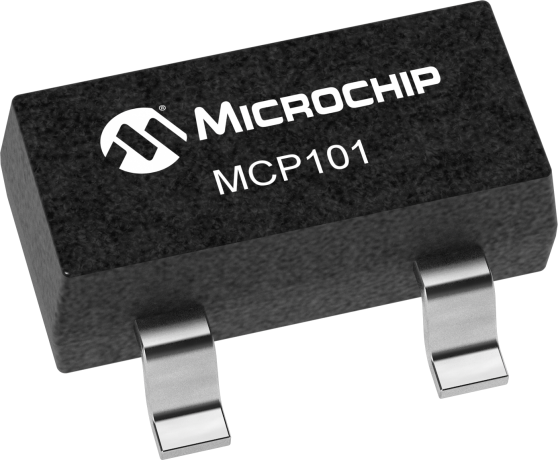

MCP101

Microcontroller Supervisory Circuit with Push-Pull Output

Status: In Production

Features:

  • Holds microcontroller in reset until supply voltage reaches stable operating level
  • Resets microcontroller during power loss
  • Precision monitoring of 3V, 3.3V and 5V systems
  • 7 voltage trip points available
  • Active low RESET pin (MCP100) or active high RESET (MCP101)
  • Push-pull output
  • Holds RESET for 350ms (typical)
  • RESET to VDD = 1.0V
  • Accuracy of +(-)125mV for 5V systems and +(-)75mV for 3V systems over temp
  • 45uA typical operating current
  • Industrial (I): -40C to +85C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP101 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. MCP100 has a CMOS Push-Pull output with Active Low reset and is available in a choice of seven different trip voltages. It operates over the extended industrial temperature range (-40°C/+85°C). MCP101 is available in a TO-92 or SOT23-3 packages.

Additional Features
    • Holds microcontroller in reset until supply voltage reaches stable operating level
    • Resets microcontroller during power loss
    • Precision monitoring of 3V, 3.3V and 5V systems
    • 7 voltage trip points available
    • Active low RESET pin (MCP100) or active high RESET (MCP101)
    • Push-pull output
    • Holds RESET for 350ms (typical)
    • RESET to VDD = 1.0V
    • Accuracy of +(-)125mV for 5V systems and +(-)75mV for 3V systems over temp
    • 45uA typical operating current
    • Temperature range:
      • Industrial (I): -40C to +85C
Parametrics
Name
Value
Product Type
Supervisor
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
2.7, 3, 3.15, 4.5, 4.6, 4.75, 4.85
Reset Type
Active High
Output
Push-Pull
Typical Reset Pulse Width (ms)
350
Typical Supply Current (µA)
45

Documents

Jump to:
×

Data Sheet

MCP100/101 Datasheet
10/22/2002
292KB

Application Notes

Download All
AN686 - Understanding and Using Supervisory Circuits
05/13/2003
84KB
AN820 - System Supervisors in ICSP™ Architectures
10/05/2006
111KB

Brochures

Analog & Interface Guide (Volume 2)
10/11/2005
1067KB
Analog Solutions for Automotive Applications Design Guide
12/08/2009
284KB
Quick Guide to Microchip Development Tools
09/04/2018
10494KB

Product Line Card

Analog & Interface Product Selector Guide
01/03/2019
4427KB

Product Line Documents

Microcontroller Supervisor Family Product Overview
06/13/2006
91KB

User Guides

Voltage Supervisor SOT23 Evaluation Board User's Guide
08/02/2006
809KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
Voltage Supervisor Evaluation Board
Voltage Supervisor Evaluation Board ( VSUPEV )

The Voltage Supervisor SOT23 Evaluation Board allows the system designer to quickly evaluate the operation of Microchip’s Voltage Supervisors and Voltage Detectors in the SOT-23-3 package. The board has been made generic so that other SOT-23-3 devices (such as LDOs and Voltage References) may also be evaluated using this board. This kit comes with four blank PCBs to allow the designer to...

Learn More
Add To Cart
