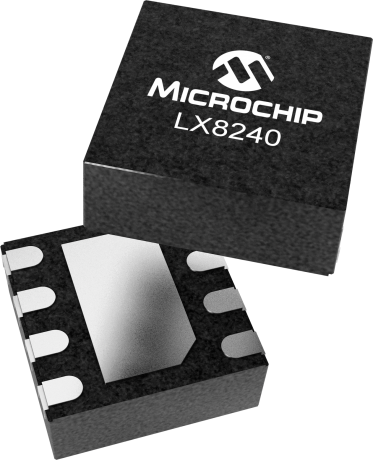

product primary image

LX8240

Low-Dropout Linear Regulator

Status: In Production

Features:

  • High PSRR, higher than 48 dB over all frequency up to 100kHz
  • High PSRR, higher than 32 dB over all frequency up to 1MHz
  • +/-2% Accuracy over Temp, Supply and Load
  • Adjustable Output (0.5V reference)
  • Over Current Limit
  • Thermal Protection
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

LX8240 is a low-dropout regulator offering the highest Power Supply Rejection Ratio (PSRR), higher than 48 dB over all frequency up to 100kHz, and higher than 32 dB over all frequency up to 1MHz for LDO devices supplying 800mA of output current. LX8240 also requires very low quiescent current. It has separate Bias and Input supply rails to improve efficiency and minimize power dissipation. The VBIAS input includes a voltage compliance range from 2.7V to 5.5V, and the VIN supply range is 1.2V to 4.2V. The output voltage is programmed by an external resistor divider utilizing the 0.5V reference feedback (FB) pin allowing output voltages as low as 1V. LX8240 is an ideal selection for battery-powered systems where the low quiescent current cannot be compromised. It is also guaranteed to be the stable even with only a 1µF ceramic capacitor. To protect the device the LX8240 also includes internal thermal shutdown, and overcurrent limit features.

Additional Features
  • High PSRR, higher than 48 dB over all frequency up to 100kHz
  • High PSRR, higher than 32 dB over all frequency up to 1MHz
  • +/-2% Accuracy over Temp, Supply and Load
  • Adjustable Output (0.5V reference)
  • Over Current Limit
  • Thermal Protection
Parametrics
Name
Value
Dropout Voltage @ Max Iout (mV)
200 mV
IOUT (mA)
800 mA
VIN Min (V)
1.2
VIN Max (V)
4.2
Voltage Drop Typ (mV)
200 mV
IGND Typ (µA)
150 uA
Tol Typ %
1%
PSRR 1 kHz (dB)
55 dB

Documents

Jump to:

Data Sheets


616KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LX8240ILD-TR
0.000000
0.000000
8
WDFN
2x3x0.80mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
