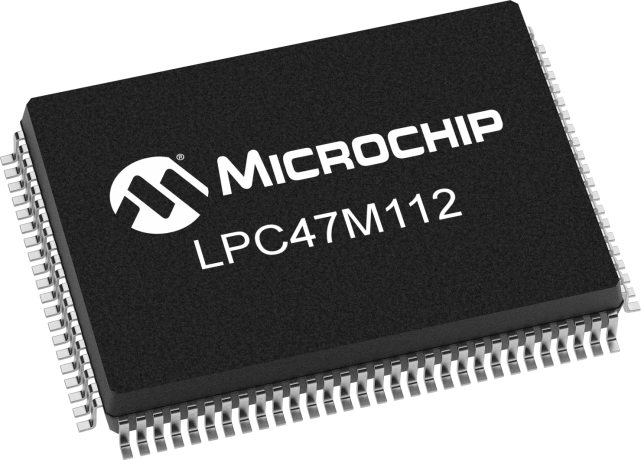

product primary image

LPC47M112

Super I/O Controller

Status: In Production

Features:

  • LPC Interface
  • 100 QFP Packaging
  • 3.3V Operating Voltage
  • 37 GPIO Pins
  • 1 Multi-Mode Parallel Port with EPP and ECP Support
  • Dual Game Port Interface
  • CMOS 765B Floppy Disk Controller
  • On-chip 12 mA AT bus drivers
  • 1 Floppy Direct Drive Support
  • 2 N216C550-compatible UARTs
  • MPU-401 MIDI support
  • ISA Plug-and-Play Standard (Version 1.0a) Support
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

LPC47M112 is a 3.3V (5V tolerant) PC98/PC99 compliant Super I/O controller. It implements the LPC interface, provides fan control through two fan speed control output pins and two fan tachometer input pins. The product incorporates a keyboard interface, SMSC's true CMOS 765B floppy disk controller, and Intelligent Power Management including PME support.

The true CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures in addition to providing data overflow and underflow protection. The parallel port is compatible with IEEE 1284, EPP, and ECP. LPC47M112 incorporates sophisticated power control circuitry (PCC) which includes support for keyboard and mouse wake-up events and supports multiple low power-down modes.

The recommended functionality to support Windows '95, Windows 98, Windows 2000 and Windows ME is provided.

Family parts
LPC47M112-MW

Additional Features
    • LPC Interface
    • 100 QFP Packaging
    • 3.3V Operating Voltage
    • 37 GPIO Pins
    • 1 Multi-Mode Parallel Port with EPP and ECP Support
    • Dual Game Port Interface
    • CMOS 765B Floppy Disk Controller
    • On-chip 12 mA AT bus drivers
    • 1 Floppy Direct Drive Support
    • 2 N216C550-compatible UARTs
    • MPU-401 MIDI support
    • ISA Plug-and-Play Standard (Version 1.0a) Support
Parametrics
Name
Value
Parallel Port
Yes
GPIO Pins
37
Operating Voltage
3.3V
Op Temp Max
70
Interface
LPC

Documents

Jump to:

Silicon Product

06/26/2014
0B

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LPC47M112-MW
3.545455
100
MQFP
14x20x2.7mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
